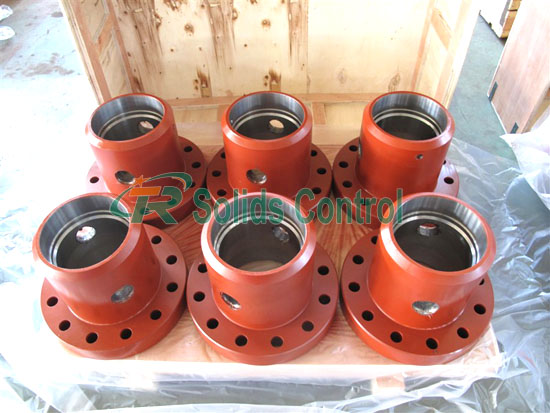

API Drilling Tools Wellhead Casing Hanger 15000PSI

Product Descrption

Accepting the type casing hangers, the standard head is an API standard. It eliminates the need for lockdown screws to retain the bowl protectors, creating fewer leak paths. The bottom prep of the casing head can be machined to fit a variety of applications. The straight bowl design prevents the wedge locking of bowl protectors, casing hangers, and test plugs, simplifying the installation process.

The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.

Basic Benefits of Our Wellhead Casing Hanger

• Designed with lock-up screws to prevent accidental open.
• Temperature range: -46°C ~121°C.
• Sustain 50% load of casing tensile strength.
• Two slip components suitable for hanging casing strings in heavy-duty conditions.
• Method to set the seal: casing string weight.

Technical Parameters of TR Wellhead Casing Hanger
