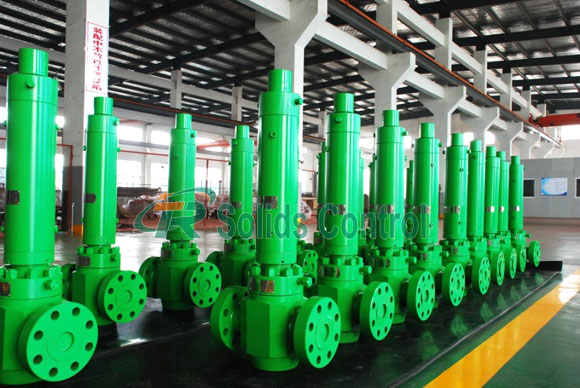

API 6A Hydraulic Surface Safety Valve for Wellhead

Product Introduction

Surface safety valve (SSV) is a pneumatically or hydraulically actuated fail-safe gate valve for producing or testing oil and gas wells with high flow rates, high pressures, or the presence of H2S. The SSV is used to quickly shut down the well upstream in the event of overpressure, failure,blockage,a leak in downstream equipment, or any other well emergency requiring an immediate shut down.

To ensure safety, the drilling pump is equipped with safety valve in the outlet, which is able to control the ultimate pressure of the pump within the admitted scope.

The application of safety relief valves:

1) High pressure oil / gas wells production.
2)Testing oil and gas wells with high flow rates, high wellhead pressures, or the presence of H2S.
3)Wells with hazard operational analysis showing a surface pressure barrier is needed in addition to the primary or master valve.

Structure Features of Wellhead Surface Safety Valve

• Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
• Double metal-to-metal seals for reliability in harsh environments.
• Bore Size: all popular.
• Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
• Inlet and outlet connections: API 6A flange or hammer union.
• Compliance with API-6A (PSL-3 , PR1), NACE MR0175.

Key Parameters of TR Wellhead Surface Safety Valve

TR Solids Control is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
