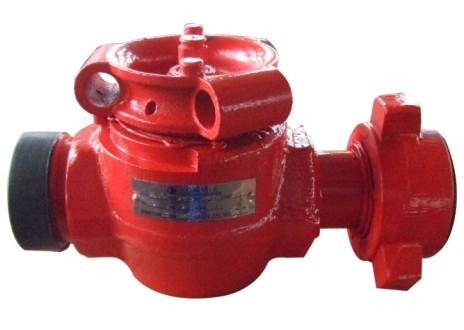

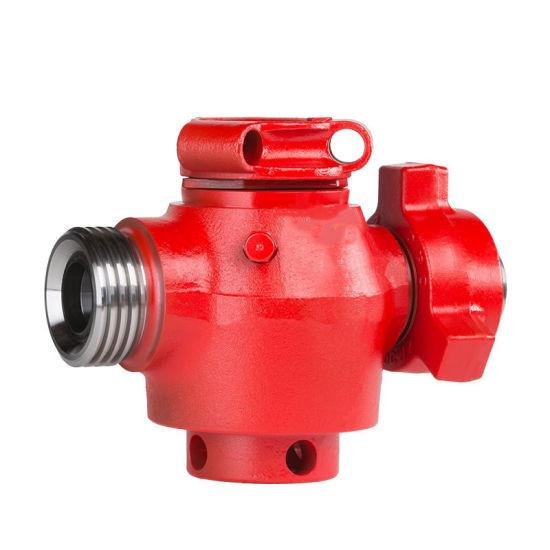

API 6A Wellhead Manifold Replacement FMC Plug Valves
API 6A Wellhead Manifold Replacement FMC Plug Valves
API 6A Wellhead Manifold Replacement FMC Plug Valves
API 6A Wellhead Manifold Replacement FMC Plug Valves
API 6A Wellhead Manifold Replacement FMC Plug Valves
API 6A Wellhead Manifold Replacement FMC Plug Valves
Specifications
Brand Name :
TR Solids Control
Model Number :
TR-SF
Certification :
API 6A, ISO9001
Place of Origin :
Xi'an City, China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
20 days
Packaging Details :
Pallet or wooden case
Port Size :
1"-4"
End Connection :
FIG 1502(F*M)/FIG 2202(F*M)
Material :
Alloy, Stainless Steel
Standard :
API 6A
Working Pressure :
-46°C -121°C
Manufacturing Process :
Forging
Surface Treatment :
Spray-Paint
Actuator :
Manual or Turbine Head
Description

API 6A Replacement FMC Plug Valves for Wellhead Manifold

Product Introduction

The low-torque plug valves designed and manufactured by our company are all forged from high-quality high-strength alloy structural steel. The materials used are in full compliance with ASTM and AISI standards, and the product specifications are in full compliance with API Spec 6A. The end of the plug valve is connected by the hammer union plug valve, LP internal thread connection and LP external thread connection. At the same time according to customer requirements to design a base high pressure plug valve.

Plug valve specifications are 1", 2", 3", cold working pressure 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa(15000Psi) three grades, can be used at room temperature, low temperature and sulfur gas conditions and repair kit.

Main Advantages of Our Wellhead Plug Valve

  • Union connections on both ends.
  • Compact structure, easy operation and maintenance.
  • Available with manual, handwheel and hydraulic actuators with limiter switches.
  • Valves can be serviced without removing from the line.
  • Plug valves for standard service range are available in 1 " to 4 " bore sizes and 6,000psi to 20,000psi rated pressure.

Technical Parameters of TR Wellhead Plug Valve

Nom.
Size		 End
Connection		 CWP
psi(bar)		 P/N Weight
lb (kg)		 Operator
/Actuator		 Dimension(in.) Service
A B C D
1" x 1" FIG 1502 (FxM) 15,000
(l,034)		 3902075913 41(18.6) Manual 7.43 2.4 2.74 10.59 Standard
1" x 1" FIG 1502 (FxM) 15,000
(1,034)		 3902076390 76(34.5) Hydraulic 15.83 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(l,034)		 3900000567 56(25.3) Manual 7.9 2.4 3.76 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)		 3902076300 87(39.4) Hydraulic 16.3 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)		 3902076982 99(44.8) Hydraulic 19.55 1.75 3.76 10.59 Standard
&Manual
1"x 2" FIG 1502 (FxM) 10,000
(690)		 3902075601 51(23.1) Manual 8.11 1.75 3.76 10.57 Sour
1"x 2" FIG2002(FxM) 20,000
(1,379)		 3902075469 66(29.9) Manual 7.06 2.4 3.74 13.02 Standard
1(1/2" x
1(1/2"		 FIG 1502 (FxM) 15,000
(1,034)		 3902075945 103(46.8) Manual 8.28 2.63 3.58 13.88 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)		 3900000037 105(47.6) Manual 8.93 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)		 3902076298 160(72.4) Hydraulic 19.31 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)		 3902076983 156(70.6) Hydraulic 21.34 3.44 3.76 13.9 Standard
&Manual
2"x 2" FIG 1502 (FxM) 10,000
(690)		 3902075275 96(43.5) Manual 8.48 2.69 3.76 13.9 Sour
2"x 2" FIG2002(FxM) 20,000
(1,379)		 3900000508 114(51.7) Manual 9.09 3.44 3.74 15.2 Standard
2"x 2" FIG2202(FxM) 15,000
(1,034)		 3902075602 104(47.1) Manual 8.03 2.68 3.74 15.26 Sour
3"x 3" FIG 1502 (FxM) 15,000
(1,034)		 3902064227 236(107) Manual 12.8 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 15,000
(1,034)		 3900000034 313(142) Handwheel 24.54 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 10,000
(690)		 3902075603 254(115) Manual 14.48 5 4.44 15.69 Sour
3"x 3" FIG2002(FxM) 20,000
(1,379)		 3900000391 613(278) Manual 19.65 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)		 3902076022 683(310) Handwheel 32.69 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)		 3902075865 745(338) Hydraulic 29.13 6.66 5.93 22.13 Standard
3"x 3" FIG2202(FxM) 15,000
(1,034)		 3902076111 683(310) Handwheel 32.69 6.66 5.93 22.13 Sour
4"x 4" FIG1502(FxM) 15,000
(1,034)		 3902065696 701(318) Manual 21.3 7.28 5.93 22.84 Standard
4"x 4" FIG1502(FxM) 15,000
(1,034)		 3902076569 717(325) Handwheel 26.88 7.28 5.93 22.84 Standard

API 6A Wellhead Manifold Replacement FMC Plug Valves

TR Solids Control mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
