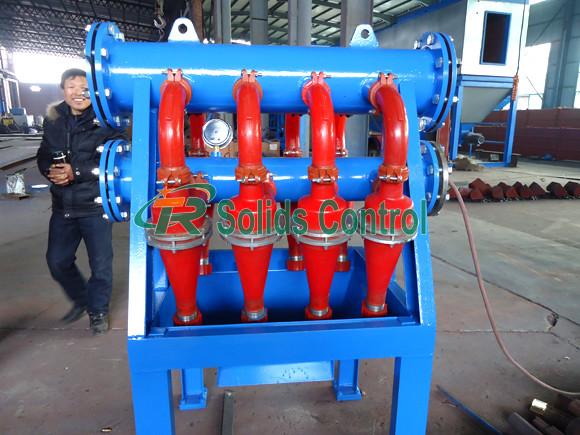

Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity
Specifications
Brand Name :
TR Solids Control
Model Number :
TRCN100-6N
Certification :
ISO9001:2008
Place of Origin :
Xi'an,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Sets / Month
Delivery Time :
Within 20 days after deposit
Packaging Details :
Pallet or wooden case
Hydrocyclone :
6nos
Inlet Size :
DN125mm
Separation Point :
15μm-44μm
Weight :
560kg
Capacity :
90m3/h
Working Pressure :
0.25-0.4Mpa
Outlet Size :
DN150mm
Bottom Shaker :
TRZS60/N/A
Dimension :
1510*1360*2250mm
Description

Factory Price Mud Desilter / Oilfield Drilling Fluids Desilter / Mud Desilter for Sale

Introduction:

Mud Desilter is composed of 10-12 φ125 polyurethane hydraulic cyclone and a small fine shaker combination. It is used to remove the drilling fluids 20-40μm harmful solid phase. The usage shows that the equipment is designed to be reliable, workable, mud removal effect, is the ideal drilling fluid control equipment.

TR Mud Desilter is designed by the theory of particle sedimentation. The separation medium-drilling fluid produces some pressure and speed when it passes the centrifugal pump, and flows into the hydrocyclone along the wall, the bigger solid particles along the wall of hydrocyclone sink spirally under the centrifugal force and gravity, and to be discharged from the bottom flow hole and fall on the under micromeshsieve for separation. The other mediums rise along the spiral of hydrocyclone, flow into the fourth class separation equipment-centrifuge for a further cleaning treatment from the overflow hole.

Key Advantages of Our Mud Desilter:

  1. Heat treatment on entire deck.
  2. Painting: Heavy anti-corrosion paint.
  3. International famous brand vibration motor with Martin or OLI.
  4. Inlet and outlet adopt fast joint connection.
  5. High strength compound rubber material used to reduce shocking.
  6. Electrinic control system from famous brand explosion-proof eletronic switch.
  7. Cyclones with high wearing-resisting polyurethane and high-chromium iron.

Specifications of Our Drilling Desilter

Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.

Oilfield Drilling Fluid Mud Desander Dn 125mm Inlet Size 90m3/H Capacity

Application in Drilling Solids control:

TRCM series mud desilter is currently used in oil & gas drilling, city bored piling, Drilling Waste Management, tunneling construction, micro-tunneling, mining, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. We also supply other solid control equipment like desander, shaker screens, shale shaker, mud cleaner, decanter centrifuge, jet mud mixer, desilter, vertical cutting dryer, mud gas separator etc.

Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
