API Drilling Fluid High Capacity Mud Cleaner for Sale / Good Performance Mud Cleaner

Introduction

High effective mud cleaner is the second or third stage separation equipment of drilling liquid, which will handle the solids particle after being treated by the first grade separation equipment. The mud will be recovered and cuttings which are bigger than mud will be removed. Then the cuttings in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.

TRQJ series mud cleaner combines desander cleaner, desilter cleaner and underset shale shaker as one complete equipment, compressed structure, small size and powerful function. It is the ideal choice of second and third phase solids control equipments.

Main Characterstics of Our Mud Cleaner:

1. Compact design with small footprint, with top feed and weir feed two option.
2. Hook-strip shaker screens for fast screens changing with screens.
3. Mechanical Deck is adjustable during operation, reliable performance.

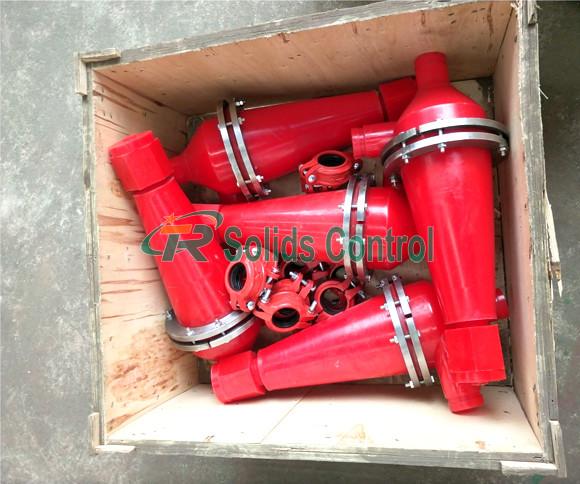

4. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.

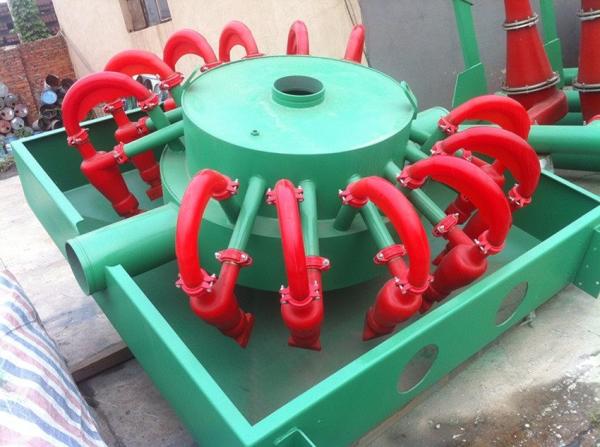

5. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
6. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.

Technical Specifications of Our Mud Cleaner

Main Application

TR drilling mud cleaner is mainly used in city bored piling, trenchless HDD, tunneling construction, oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc. Please feel free to ask us for any inquiry of mud cleaner. We would like to provide good price and excellent service.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
