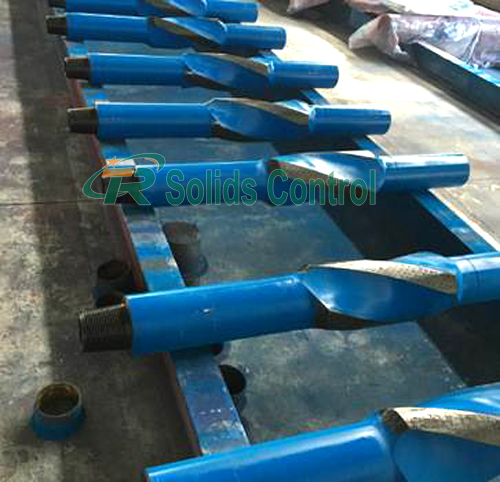

HF4000 Drilling string stabilizer Integral Spiral Blade Stabilizer

Product Desription

Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or higher in the drill string. It is a one piece construction manufactured from high strength alloy steel (non-magnet steel optional), that prevents differential sticking of the drillstring by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall.This reduces vibration, drill pipe whirl, and wellbore tortuosity;furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.

Several types of drilling stabilizers are used in the oilfield today. While integral stabilizers (fully machined out of a single piece of steel) tend to be the norm, other types can be used, such as : Replaceable sleeve stabilizer, where the blades are located on a sleeve, which is then screwed on the body. This type can be economical when no repair facilities are available close to the well being drilled and air freight has to be used.

Optional Stabilizers

The offers several options for IBS, in both alloy steel and non-magnet materials:
• Spiral Integral Blade Stabilizer;
• Straight Integral Blade Stabilizer;
• non-magnet Integral Blade Stabilizer;

Main Parameters of TR Drilling Stabilizer

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
