Petroleum Oil Mud Mixture Machine With API Certificate 0.25 - 0.4Mpa Work Pressure
Petroleum Oil Mud Mixture Machine With API Certificate 0.25 - 0.4Mpa Work Pressure
Petroleum Oil Mud Mixture Machine With API Certificate 0.25 - 0.4Mpa Work Pressure
Petroleum Oil Mud Mixture Machine With API Certificate 0.25 - 0.4Mpa Work Pressure
Specifications
Brand Name :
TR Solids Control
Model Number :
TRSLH150-50
Certification :
API Certificate, ISO Certificate
Place of Origin :
Xi'an,China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000 Sets Per Month
Delivery Time :
15 days after deposit
Packaging Details :
Iron or wooden case
Capacity :
240m3/h
Matching Pump :
TRSB8*6-13J
Motor Power :
55kw
Inlet Diameter :
150mm
Work Pressure :
0.25 to 0.4Mpa
Nozzle Diameter :
50mm
Hopper Dimension :
750*750mm
Burden Speed :
<100kg/min
Weight :
1600kg
Dimension :
2200*1700*1200mm
Description

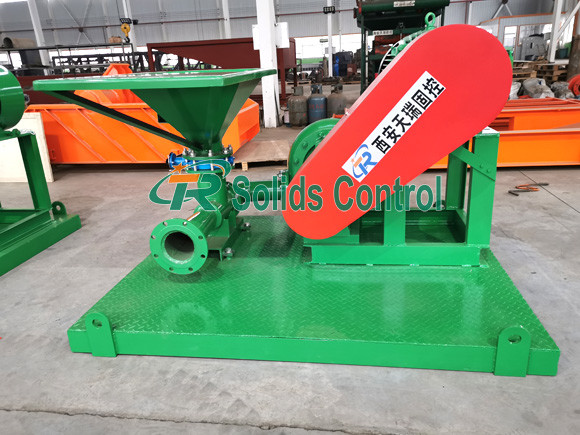

Petroleum Oil And Gas Drilling Jet Mud Mixer with API Certificate

Main Introduction

Jet mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.

TRSL Series Mud Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.

Key Strengthsof TRSLH Jet Mud Mixer

  1. The effect is more prominent matching with Shear Pump.
  2. The unit includes one sand pump, one jet mixing hopper.
  3. It can be made Twin Jet Mud Mixers according to the user requirements.
  4. It is safe and stable and can be moved conveniently.
  5. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
Technical Specifications of TRSLH Jet Mud Mixer

Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm

Petroleum Oil Mud Mixture Machine With API Certificate 0.25 - 0.4Mpa Work Pressure

TR has a complete line of mud mixing equipment designed to assist operators with the greatest available efficiency in blending. TRSLH series jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
