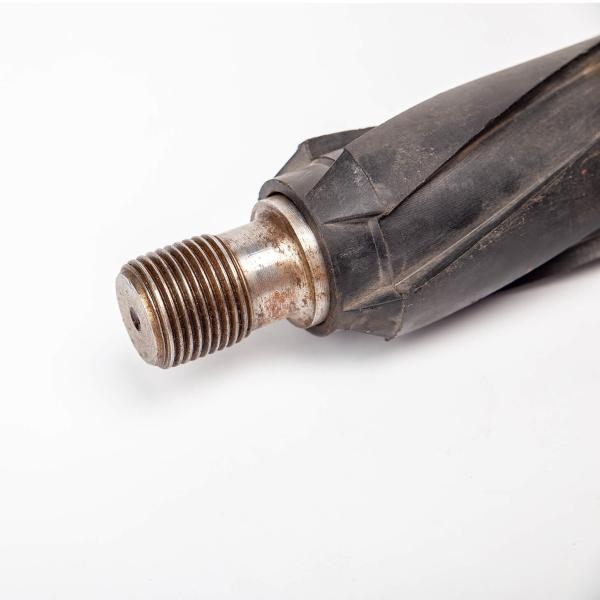

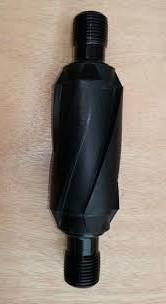

API 11B 5/8 Sucker Rod Centralizer For Well Drilling
API 11B 5/8 Sucker Rod Centralizer For Well Drilling
API 11B 5/8 Sucker Rod Centralizer For Well Drilling
API 11B 5/8 Sucker Rod Centralizer For Well Drilling
API 11B 5/8 Sucker Rod Centralizer For Well Drilling
API 11B 5/8 Sucker Rod Centralizer For Well Drilling
Specifications
Brand Name :
TR Solids Control
Model Number :
TR-CGF
Certification :
API 11B, ISO 9001
Place of Origin :
Xi'an China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20000 pcs per month
Delivery Time :
10 days
Packaging Details :
Wooden case
Size :
5/8" ~ 1-1/8"
Thread Size :
15/16"
Processing Type :
Forging
Length of pin :
31.75 mm
Length of wrench :
≥ 31.8 mm
Warranty :
12 Months
Package :
Wooden Case
Usage :
Oil well application
Description

Positive-Displacement Motor / Mud Motor Thread 5 1/2"REG

Product Overview

Sucker rod is used to prevent the pumping rod centralizer and columns and tubing wall friction. Our company can produce the twisted card sucker rod centralizer, with installation and removal easy, high strength, high toughness, low creep, low water absorption, anti-corrosion oil, wear characteristics. Compared with the plug-formed stabilizer, less prone to fall off, the card pumps and so on. Is the major oil production in the ideal of a sucker rod centralizer.

Twist-On rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 2000 F.

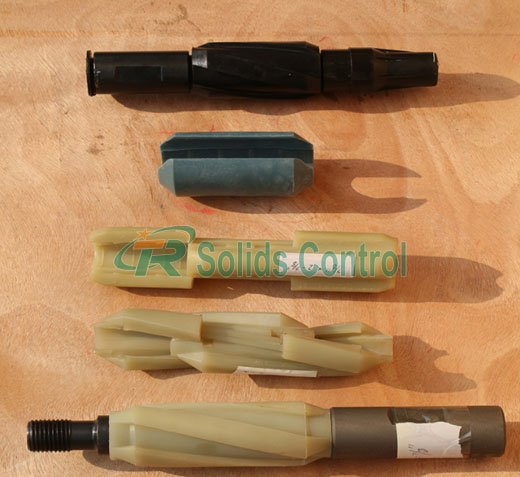

Three Types


1) Wheel centralizer: When sucker rod works, wheels roll on tubing inside. It can avoid sucker rod rubbing with tubing pipe;


2) Rod shaped centralizer: When sucker rod works, nylon block touches tubing inside, it can avoid sucker rod rubbing with tubing pipe. Nylon block can rotate, then the rub is even wear. The user only change nylon block replace rod body, which reduces fabrication-cost;

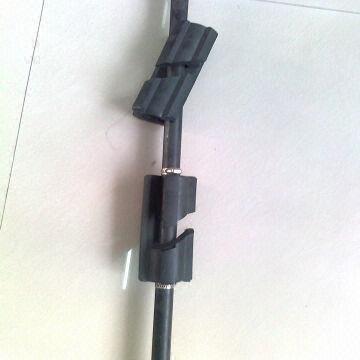

3) Twist centralizer: Low cost, easily operated.

Technical Specification of Sucker Rod Centralizer

Size Rod D.(in) Thread D.(in) Length of pin(mm) Length of wrench(mm) Width of Wrench (mm) Length of rod(ft)
5/8 5/8 15/16 31.75 ≥ 31.8 22.20 2 / 4 /6 / 8 /10/25/30
3/4 3/4 1-1/16 36.50 ≥ 31.8 25.40 2 / 4 /6 / 8 /10/25/30
7/8 7/8 1-3/16 41.28 ≥ 31.8 25.40 2 / 4 /6 / 8 /10/25/30
1 1 1-3/8 47.63 ≥38.1 33.30 2 / 4 /6 / 8 /10/25/30
1-1/8 1-1/8 1-9/16 53.98 ≥41.3 38.10 2 / 4 /6 / 8 /10/25/30

API 11B 5/8

Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.

The company possesses excellent office environment, specialized technology, business and management team. In the course of future development, the company will continue to enhance product quality and technical service management. We are committed to build the company into a international first-class "one stop" comprehensive oil drilling products supplier and service providers, providing each customer in the world with high quality & affordable products and professional & perfect service!

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
