Factory Price API 16C Choke Manifold for Petroleum Oil & Gas Drilling

Choke Manifold

1. Application

Choke manifold is a necessary device in the process of blowout control and implementation of oil and gas pressure control technology. In case that the BOP is off, the pressure at the bottom of well shall be kept higher than formation pressure through controlling casing pressure with choke valve on-off. Additionally, soft shut-in can be realized through relieving pressure with choke manifold in the process of well shut-in. When pressure in well rech at extreme limitation,it can be used to prevent blowout and protect wellhead.

Choke and Kill Manifold is used to control well kick and pressure. In case of well kick or blowout, Choke Manifold may control downhole pressure by valves open/close. Heavy slurry may be pumped into well by Kill Manifold to reach pressure balance. Besides, Choke Manifold can be applied to well cleanup and blow-off.

2. Configuration

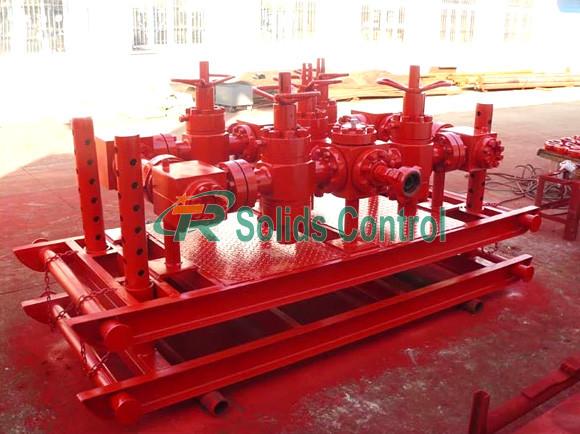

Choke manifold consists of four manual gate valves (also called diamont choke manifold, five gate valves if a bypass valve is included). It is used to control the flow rate and reduces well pressure before the flow enters the processing equipment. The maniflod also includes a positive choke box, an adjstable choke, and several pressure or sampling ports and thermowells to monitor pressure, temperature, and fluid characteristics.

3. Working Principle

When well pressure rises, the choke valve (it falls into three kinds: Manually adjustable, hydraulic and positive) on choke manifold can be turned on and off to release the fluid to control casing pressure. Gate valve can be used for direct blowout. When casing pressure is pretty high,

The pressure class of our company's chokes manifold falls into five class: 14MPa, 21MPa, 35MPa, 70MPa and 105MPa. Also, we can design according to customer demand.

4. Operating Instructions of Our Choke Manifold:

1. The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120 degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
2. The pressure gauge must be installed.
3. The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
4. The choke manifold shall be installed at the place where the operator can reach it easily. The pressure test must be performed prior to installation and the seat test pressure shall be equal to the rated working pressure.
5. In winter, the choke manifold can work under a low temperature condition.

Technical Data of Our Choke Manifold:

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
