65T Load API Type Side Door Elevator 3 1/2 For Casing
65T Load API Type Side Door Elevator 3 1/2 For Casing
65T Load API Type Side Door Elevator 3 1/2 For Casing
65T Load API Type Side Door Elevator 3 1/2 For Casing
65T Load API Type Side Door Elevator 3 1/2 For Casing
65T Load API Type Side Door Elevator 3 1/2 For Casing
Specifications
Brand Name :
TR Solids Control
Model Number :
TRY
Certification :
API 8A/8C, ISO
Place of Origin :
Xi'an China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000 Pcs Per Month
Delivery Time :
7-10 days
Packaging Details :
Pallet or wooden case
Size :
3 1/2" ~30"
Model :
SX SLX style Side Door Elevator
Material :
Carbon Steel
Pipe Size :
2 3/8-5 1/2"
Package :
Wooden case
Processing Type :
Forging
Rated Load :
65Ton, 100Ton,150 Ton,200 Ton
Color :
Red, Orange
Description

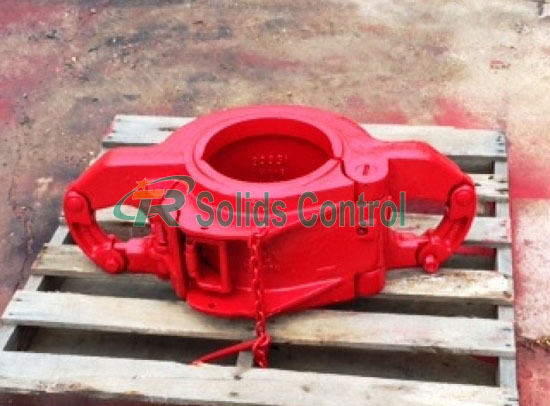

API Type SLX Side Door Elevator Size 3 1/2" for Casing

Product Introduction

The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment. S Series side door elevators with square shoulder are suitable for handling casings in oil drilling, natural gas drilling and well construction. The products shall be designed and manufactured according to API Spec 8C Specification for drilling and production hoisting equipment.

Model SLX side door elevator with square shoulder are suitable for handling tubing, casing ,drill pipe and drill collar in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment

Why choose us?


1. Good manufacturer and supplier on the website, is a credit company.
2. Advanced technology, high quality products and reasonable price!
3. Good service, the customization and trial order are both accepted.
4. A talent and experienced team.

Product Specifications of Our SLX Type Elevator

Model
Size(in)
Rated Cap. (short tons)
SLX-65
31/2-141/4
65
SLX-100
23/8-53/4
100
SLX-150
51/2-135/8
150
SLX-250
51/2-30
250
SLX-350
1941/2/14
350

Type Pipe O.D. Max.Dia.Weldless Links Max.Load
In mm mm In kN(Tons)
CD 2 3/8-2 7/8 60.3-73.0 69.85 2 3/4

100(900)

150(1350)

200(1800)

250(2250)

350(3150)
3 1/2-4 88.9-101.6 69.85 2 3/4
4 1/25 1/2 114.3-127-139.7 69.85 2 3/4
6 5/8-8 5/8 168.3-219.1 88.9 3 1/2
9 5/8-10 3/4 244.5-39.7 88.9 3 1/2
11 3/4-13 3/8 298.5-339.7 88.9 3 1/2
14-16 355.6-406.4 88.9 3 1/2
18 5/8-20 473.1-508 88.9 3 1/2
22-30 558.8-762.0 88.9 3 1/2
CDZ Model Drill Pipe Soze and Style Elevator Bores Elevator Sign Max.LoadkN(Tons)
DDZ67 2 3/8EU 67 2 3/8EU

150(1350)

250(2250)

350(3150)
DDZ83 2 7/8EU 83 2 7/8EU
DDZ101 3 1/2EU 101 3 1/2EU
DDZ109 4IU 109 4IU
DDZ121 4 EU 121 4 EU
4 1/2IU 4 1/2IU
4 1/2IEU 4 1/2IEU
DDZ133 4 1/2IU 133 4 1/2IU
5IEU 5IEU
DDZ148 5 1/2IEU 148 5 1/2IEU

65T Load API Type Side Door Elevator 3 1/2

Xi'An TianRui Petroleum Machinery Equipment Company Limited will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
