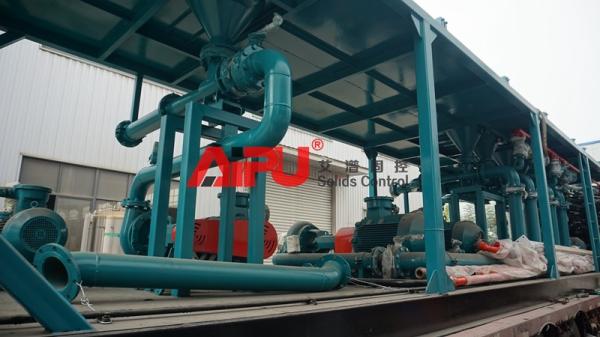

Aipu supply the high quality drilling mud solids control system for oil rig

Aipu solids control system is optimal solution for you to process well drilling fluids. From the shaker, cleaner, to centrifuge; from shaker screen, spring, to valves spare parts.

Process of Aipu solids control system

1. Drilling fluid from drill hole will feeding into shale shaker buffer box by pipeline, the shaker can install shaker screen mesh API 35 to API 120 to separate larger drilling cuttings. Fluids part will drop into sand trap through mesh screen panel.

2. drilling mud from sand trap will over flow into next compartment and vacuum degasser will suction mud to degasser and treated mud will overflow into degasser compartment.

3. Desander feeding pump will suck mud from degasser compartment and feed into desander cyclone for 47 – 76 micron separation. Solids part will drop from desander nozzle and fluids over flow into desander compartment.

4. Another will pick up mud from desander compartment and feed desilter cyclone, solids part drop through desilter nozzle and fluids over flow into desilter compartment.

5. Submersible slurry pump or screw pump then transfer mud from desilter compartment into decanter centrifuge for 2 – 7 micron separate and clean mud flow into centrifuge compartment

6. All tanks compartment after desilter compartment we name as clean mud, mixing pump can suction or discharge to any of the clean mud tank for mud transfer or new mud mixing.

Application of Aipu solids control mud tank

Oilfield Drilling Mud Tank System For Drilling Mud Mixing And Storing

Oil well drilling mud solids control system is very important for drilling efficiency to enhance and cost-save. Whole drilling mud system including the shale shaker, degasser, mud cleaner, centrifugal pump, decanter centrifuge, mud agitator, mud gun, jet mud mixer, mud tanks, and the mud gas separator.

We, Aipu solids control not only keep innovating the leading drilling mud purification technology, but we put them into production. In the manufacture of products: we are strict with the process and technology based on the quality management system standard. We have various production equipment to ensure product quality stability according to the product requirements. In testing the product: We use advanced detection equipment for product testing with the provisions of the international industry standards, and serious tests to ensure that all products are qualified before leaving the factory. Moreover,our drilling mud purification system technology is oilfield projects proved. Many of our customers repeat their solids control service from us.

Main specification Aipu drilling mud solids control system

Aipu drilling mud solids control system features

Customized drilling mud purification system.

Benefits of Low Solids In Drilling Mud.

Increased drilling penetration.

Increase bit or back reamer life.

Different drilling rigs may request different solids control system configuration. From shale shaker to centrifuge, from active tank to trip tank, there are many flexible design on whole system. Please refer to Aipu site or call us for detail configuration
