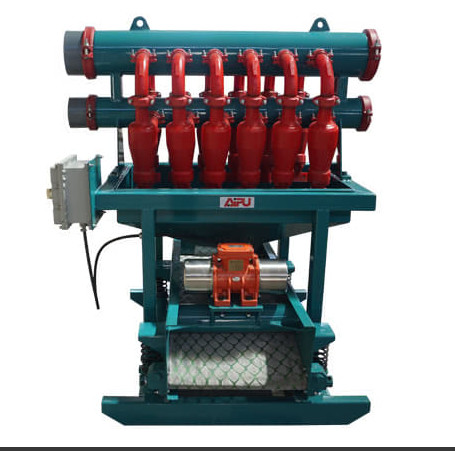

Compact Oil Drilling Mud Hydrocyclone Desilter Cleaner
Compact Oil Drilling Mud Hydrocyclone Desilter Cleaner
Specifications
Brand Name :
Aipu
Model Number :
APCN
Certification :
API ISO
Place of Origin :
China
MOQ :
1 sets
Price :
USD3500-18800
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
1 week
Packaging Details :
sea worthy
hydrocyclone :
2 ~ 4 inch
model number :
APCN
Brand name :
Aipu Solids Control
Condition :
New
After-sale service :
Engineers available to service machinery overseas
APCN desilter :
customized
Rental :
no
Warranty :
1 year
Description

Desilter For Drilling Mud, HDD, Mining And Waterwell APCN Oil&Gas Field

APCN series desilter is the second and third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually, the cone diameter is less than 6" is called Desilter, and used as the third control equipment in the drilling operation. We commonly used 5" and 4" cone to separate solid-phase particle size 15-47 m in the drilling fluid. Based on customer requirements and capacity, we can select groups of cones into Desilter.

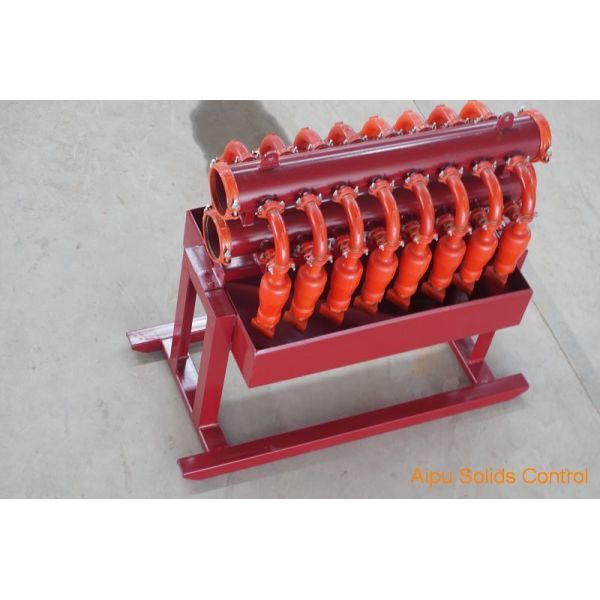

APCN Desilter Features

  • 100% Polyurethane ( PU ) material to make desilter cones for a longer lifespan.
  • Clamp type for easy maintenance.
  • Compact design with a small footprint.
  • Flexible options for 8, 10, 12, 16, or 20 pieces of 4" or 5" cones for different capacities.
  • A flexible fast connection is available for user assembly.

Desanding and desilting

Desilting and Desanding hydrocyclones are made from high-density abrasion-resistant polyurethane. The unique internal manifold design minimizes the back pressure on the hydrocyclones maximizing the solids removal. Fine-tuning is achieved through adjustable orifice openings at the discharge point on the cone.

Both Desilters and Desanders are available in a large range of configurations including stand-alone, over a shaker as a mud cleaner, or packaged with a supply pump as a mobile desilting unit. Please contact your nearest DFE office to discuss applications and appropriate technical specifications.

APCN Desilter Specifications

Model APCN60 APCN90 APCN120 APCN200 APCN240 APCN320
Capacity (m³/h) 60 90 120 200 240 320
Desilter Cone 4”x4 4”x6 4”x10 4”x16
Working Pressure 0.25-0.4Mpa
Separation Point 15-46 Microns
Inlet 6"
Outlet 8"
Bottom Shaker Model Hunter Mini Hunter D Hunter MG
Vibration Mode Linear Motion
Vibrator Motor 2x0.75Kw 2x1.72Kw 2x1.72Kw
G Force ≤7.5G
Deck Angle 2° -1 - +5°
Screen Area 1.35㎡ 2.27㎡ 2.73㎡
Screen Panel 2 Pcs 3 Pcs 4 Pcs
Dimension(mm) 1650x1250x1600mm 2450x1700x1700mm
Remark 4"Cone=12~15m³/h,5" Cone=20m³/h. It can be configured according to clients' demand.
