High Quality Carbon Steel APJQB Series Shearing Pump Is Mainly Used For A Quick Concoction Of High-Performance Mud

General description of APJQB series shear pump

Shearing pump is designed to reduce cost of mixing polymers and clays while improving mud properties, it shear the polymers eliminates fish eyes and prevents polymer chaining which can't pass though the shaker screen.It is a high efficiency equipment to handle drilling fluids.Which is mainly used for a quick concoction of high-performance mud so that the time spent on it will be greatly shortened and wells' economic benefits increased.

APJQB series Shear Pump is a special purpose equipment of solids control system which can meet all customers’ requirements of preparing dilling fluid for the well drilling. This shear pump manufactured by AIPU company is used to treat the high property mud, make the mud to obtain good rheological properties and cut the drilling cost as much as possible. This ideal solids control equipment designed by AIPU's engineers has high performance and gained customer’s high evaluation.

Below technical specification for your reference.

Shear pump Features & Benefits

1. Greatly enhances the hydration of the soil particles.
2. Makes the compounds dilute, shear and hydrate in a shorter time while saving over 30% of bentonite.
3. Offers larger capacity and lift to meet the demands on concoction and mud processing.

How many different model of shear pump at AIPU Solids

APJQB6545 and APJQB6535. The important difference between them is power. So the flow rate is different then. How do we design the shearing pump? For shearing pump, all of the pump are designed as driven by belt connected with motor. Not the horizontal installation as other pumps. Such design will help to occupy less space area. On the pump base, there is a flexible adjustment on distance between pump head and motor. Since the belt may loose or deform after operated for a long while. Then we move the pump side or motor side the belt can be tensioned tight again.

Drilling fluids processed by shearing pump then flow through whole system for a better drilling performance and lower cost expense. During whole well drilling, drilling fluids property may vary at different section or time. So the proper process is very important. The shearing pump can help users get better fluids in different drilling process. It will benefit drilling much.

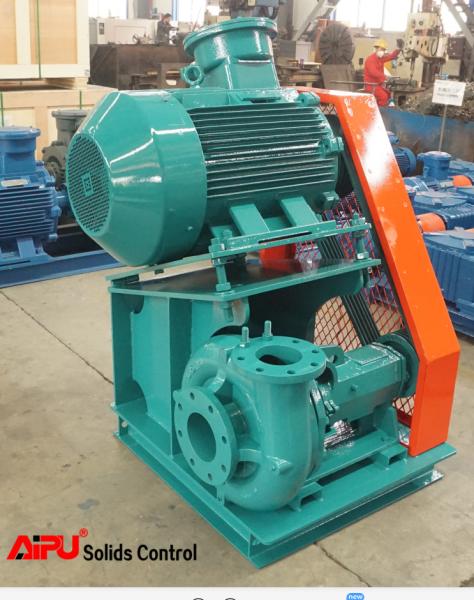

Shear pump from Aipu solids control

As a solids control equipment, shear pump is widely used and the practice has confirmed its performance and efficiency.
Aipu shear pump adopts a very reliable mechanical seal, to ensure no leakage. Because of the improvement of the pump shaft seal, so life is greatly improved. The pump is equipped with stainless steel turbine and a shear plate, can produce liquid shear more than 25.4m/s, when the flow of fluid through the drilling mud shear pump, 5% of the liquid in the turbine collection strongly promote the will be the two shear. The turbine drilling mud shear pump installed in the special base, and pulley, narrow V belt and 55KW/75kw explosion-proof motor drives. In addition to a size suitable for mixing funnel and the drilling mud shear pump matching, thus formed a perfect shear and hydration system, also called shear mixing jet apparatus

Drilling mud shear pump is useful solid control system equipment that can meet with different purposes and requirements. In the recent years, the total amount of drilling shear pump is in great demand on account of its high performance and advanced technology. Our company is professional drilling equipment manufacturer and supplier offer the world with offer the world with drilling shear pumps. We now have oilfield and drilling mud system for sale, we render the best quality of drilling shear pump with reasonable prices and reliable service.

If you have any doubt or demand on shearing pump, plesae feel free to contact AIPU Solids.You will get optimal solution soon
