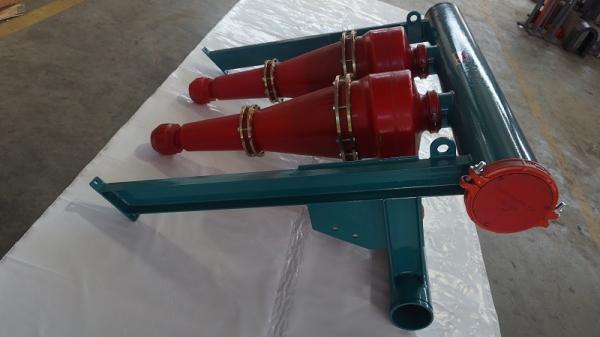

Drilling Mud Cleaner Core Part Hydrocyclone 10 inch

Hydrocyclone is a kind of high-efficiency separation equipment that's the core part of drilling mud cleaner. The cone uses centrifugal force field to separate two-phase fluid. Cyclone 10" material is high quality polyurethane which can resist temperature around 80 degree.

Hydrocyclone separators are widely used in drilling rigs, no matter onshore or offshore platforms. removing cuttings from drilling mud those hard abrasive particles too small to be rejected by a shale shaker. The treating capacity of cone 10 inch can reach 90-120 cubic meters per hour.

Hydrocyclone structure. the upper part of the cone is conical; a feeding pipe tangent to the cylinder wall is installed on the cylindrical cylinder; a central overflow pipe connected with the cylindrical part is installed on the upper part of the cone; the upper end of the overflow pipe is connected with the external pipe through the buffer chamber or directly to discharge the overflow, and a grit nozzle is installed at the bottom of the cone to discharge the coarse grit.

Hydrocyclone 10" technical specification

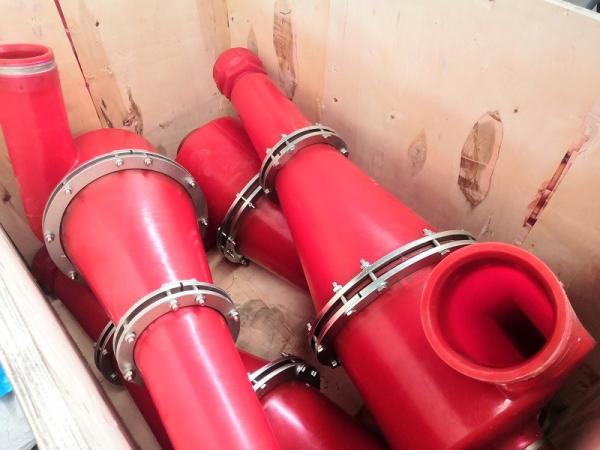

Cyclone 10" spare parts

Spare parts including upper section, upper band, middle section, lower band, lower section, apex, and apex holder. more important is these spares are interchangeable with Derrick equipment.

Hydrocyclone 10" features

1. No moving parts, simple structure

2. The production capacity per unit volume is large and the area is small

3. High classification efficiency up to 80% - 90% and fine particle size

4. Low cost and low material consumption

5. Spare parts in stock, it can be delivered immediately against request

Why select AIPU?

AIPU is professional manufacturer on complete line solids control equipment. All wearing parts are high quality and universality assured. For the cones, all of them are made of high quality polyurethane. Fit with the Victaulic coupling.

Furthermore, AIPU is able to provide the interchangeable mud cleaner spare parts for other makes cleaner. The shaker screen produced by AIPU is API RP13C compliant. Our products and spare parts are highly appreciated by many clients

AIPU solids control always hold popular spare parts in stock for instant delivery. Cater for clients urgency, we promise 48 hours delivery to avoid any operation delay. We consider clients’ urgency so we get the preference so long time

For more information, please don't hesitate to contact AIPU solids control. You will get an optimal solution on mud conditioner or any other demand.
