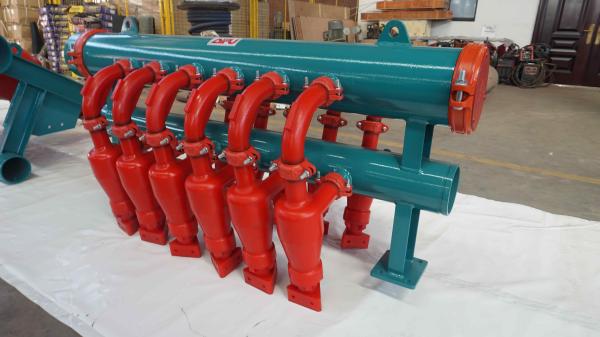

Petroleum Industry Drilling Mud Equipment For Produced Water Treatment Hydrocyclone
Petroleum Industry Drilling Mud Equipment For Produced Water Treatment Hydrocyclone
Petroleum Industry Drilling Mud Equipment For Produced Water Treatment Hydrocyclone
Petroleum Industry Drilling Mud Equipment For Produced Water Treatment Hydrocyclone
Specifications
Brand Name :
Aipu
Model Number :
AIPU
Certification :
API ISO
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
L/C, T/T
Supply Ability :
200 sets/month
Delivery Time :
10 days
Packaging Details :
Sea worthy or customized
Condition :
New
Warranty :
1 Year
Material :
Depends
Application Industrial :
Solids control system
After-service :
Engineers available to service machinery overseas
Application :
Drilling Mud Slurry Water Sand Separation
Description

Hydrocyclones Are Devices Used To Treat Produced Water In The Petroleum Industry

What is hydrocyclone used for?


A hydrocyclone is a high-throughput gravity separation device used for separating slurry particles based on particle weight. For example, particles of similar size but different specific gravity, or particles of different size but identical specific gravity.

What is hydrocyclone classification?


Hydrocyclone is a classification equipment widely used at present because of its high classification efficiency, small floor space and low price. It can be applied in the mineral classification, sewage treatment, slurry concentration, desilting and oil and water separation, etc.

Hydrocyclone 10" technical specification

Cone size 10 inch
Material Polyurethane
Capacity About 90 to 120 cubic meters per hour
Color Red or black for option
Working pressure 0.25-0.45Mpa
Temperature resistance 80 degree
Usage

Drilling mud cleaner, drilling mud desander

What is a hydrocyclone in oil and gas?


Hydrocyclones are devices used to treat produced water in the petroleum industry. These gadgets are employed especially at offshore fields, due to restrictions of charge and space. Several factors may affect the performance of the oil/water separation by hydrocyclones

How does a hydrocyclone sand separator work?


A Hydrocyclone uses a tangential injection flow process, enhancing the centrifugal forces and moving solid particles outwards. The dispersed particles move downward in a spiral path into an underflow chamber (sedimentation tank) while clean liquid moves upwards to the center of the spiral, towards the top outlet.

How does a oil hydrocyclone work?


Hydrocyclone Oil Separators apply extreme centrifugal force to separate oil particles from wastewater. A Hydrocyclone's primary construction comprises of a conical shaped chamber. This chamber has two exit outlets located at each end with one wastewater inflow inlet on the side.

Petroleum Industry Drilling Mud Equipment For Produced Water Treatment Hydrocyclone
