Semi-Submersible Slurry Pump For Transport Heavy Mud Customizable

Semi-Submersible slurry pump brief

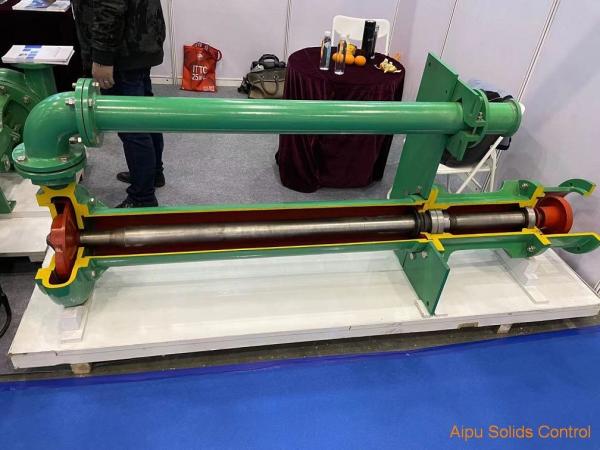

This semi-submersible pump is efficient, durable, and completely waterproof. They are designed to lift water and mud with efficiency. YZ Submersible slurry pump is a single-stage, single-suction cantilever structure. The hydraulic components of the pump are connected with a bearing seat, a supporting seat, and a connecting pipe. The liquid is discharged from the liquid outlet pipe. The impeller of the pump is a semi-open impeller. The inlet extension is equipped with agitating blades. The main feature of the pump is that the pump shaft at the submerged part has sufficient rigidity. There is no bearing between the impeller and the pump casing, and no shaft seal is used. medium. The length of the pump inserted into the liquid is between 800-2000, and a suction pipe can be equipped if necessary. The shaft seal adopts a larger pump to run in the liquid, without the shaft seal, the transmission is installed on the motor support and support seat by a vertical motor and is connected with the pump by a coupling.

Submersible slurry pump technical parameters

A semi-submersible slurry pump is a heavy-duty constructed centrifugal pump, which is able to deal with tough and abrasive duties. The term slurry pumps are considered a generic term, to separate from another type of centrifugal pump, this one is mainly used intended for clear liquids.
Why submersible slurry pump is popular with many solids control users? Submersible slurry pumps can be used to transfer fluids with big particles. It is a single-stage and single-suction slurry pump. The pump shell and impeller no bearing, no shaft seal, which can pump medium with the number of solid particles at lower maintenance cost

Features:

• Vertical type centrifugal slurry pumps
• Application for sump pumping, Single-stage pump
• Centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion, and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cement, mud, mineral stones and etc.

The scope of application of the submersible slurry pump

The submerged slurry pump produced by our company is mainly used in oil drilling mud systems. The device can also be used in environmental protection, municipal engineering, thermal power plants, gas coking plants, oil refineries, steel mills, mining, paper industry, cement plants, Food factories, printing, and dyeing industries suck the concentrated liquid, heavy oil, oil residue, dirty liquid, mud, mortar, quicksand and flowing sludge from urban sewage channels, as well as fluids containing mud, sand, and corrosive liquids.

The submerged slurry pump is a single-stage single-suction cantilever structure, and the impeller is semi-open. There are no bearings between the impeller and pump shells of the hydraulic slurry pump, and no shaft seal is used. It is maintenance-free. Generally, it can transport media with a large concentration and solid particles. The suction volume is large. The flow parts are made of wear-resistant alloys. .

The technical conditions of this product meet the standard of JB/T8096-1998 "Centrifugal Slurry Pump".

Other applications of slurry pump

In many industries, slurry pumps are used to keep liquid and solids in the mix with a large spectrum of usage, such as mine drainage, dredging of settling lagoons, and pumping of drilling mud. Slurry pump purpose can be to pump the medium where abrasive particles are available. It also transfers as many solids as possible, hydraulically. It pumps the final product in the process. Many industrial segments use this pump like iron and steel, power generation, paper industry, oil and gas, wastewater treatment, mining, process mineral, and other few

Features of Aipu submersible slurry pump

High-temperature resistance.
Maintenance-free or special structure.
No bearing and gland seal for less repair cost.
Submerge length is customizable.
IECEX, ATEX, UL, DGMS, CE, GOST certs are available against request.
Compact design takes little space.

Please feel free to contact Aipu solids control for any questions. No matter on the submersible slurry pump or solids control. You'll get optimal solution sooner
