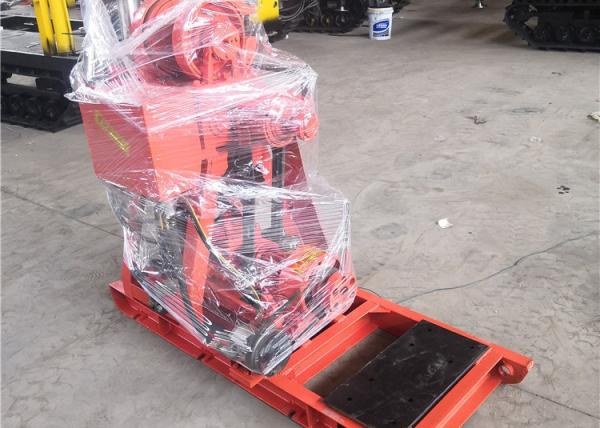

Horizontal Prospecting Customized 300m Borehole Drilling Machine
Horizontal Prospecting Customized 300m Borehole Drilling Machine
Horizontal Prospecting Customized 300m Borehole Drilling Machine
Horizontal Prospecting Customized 300m Borehole Drilling Machine
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
XY-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
Horizontal Prospecting 300 M Drilling Rig /core drill rig Borehole Drilling Machine
Geological :
Soil, Rock, Hard Rock
Type :
Portable Type
Application :
Different Field Drilling
Condition :
New
Cnc or not :
Normal,CNC
After-sales service provided :
video technical support
Weight :
According to your order
Color :
Yellow,red
Machine type :
Drilling Equipment
Warranty :
2 Years
Description

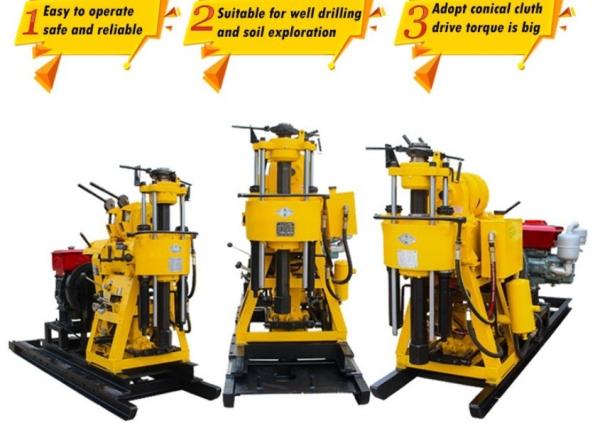

Horizontal Prospecting Customized Drilling Rig /core drill rig Borehole Drilling Machine

Customized Drilling Rig /core drill rig Borehole Drilling Machine

XY-1 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Hydraulic feeding mechanism can improve drilling efficient,reducing labor work
The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable
Equipped with hole bottom pressure indicator, you can know the situation inside the hole
Handle centered ,convenient operation
The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas.
Adopting large drive pipe,double guide rod, increase the steady

Borehole Drilling Machine Tech Specifications

DrillSwivel Head

Drilling depth

Max.100

Spindle speed

142,285,570(r/min)

Hole diameter

Max.110mSpindle stroke450kmm
Drill rod diameter42mmSpindle pull-downMax.15KN
Angle range90°~75°Spindle lifting capacityMax. 25KN
Oil pumpWater pump
ModelYBC-12/80ModelGear oil pump
Rated pressure12.5MpaWorking pressure0.7-1.2Mpa
Flow speed8ml/r
Rated speed800-2500r/min
HoistPower(diesel)
Max. lifting capacity10KNModel(diesel engineZS1105
Hoisting drum revolution55,110,220(r/min)Rated power12.1KW
Drum diameter145mmRated speed2200 r/min
WEIGHT500kgs
SIZE1640*1030*1440mm

Borehole Drilling Machine After sales service:

-Technical training for new machines.

-On site service available for quality problem.

-Timely reminding for machine maintenance.

-Construction solutions will be provided for different geological conditions.

-Remind you of the wearing parts.

-7*24 hours reply to your questions.

Horizontal Prospecting Customized 300m Borehole Drilling MachineHorizontal Prospecting Customized 300m Borehole Drilling MachineHorizontal Prospecting Customized 300m Borehole Drilling Machine
