Fast Pneumatic Percussive 180m Rock Drilling Machine
Fast Pneumatic Percussive 180m Rock Drilling Machine
Fast Pneumatic Percussive 180m Rock Drilling Machine
Fast Pneumatic Percussive 180m Rock Drilling Machine
Specifications
Brand Name :
ST
Model Number :
ST-180
Certification :
iso
Place of Origin :
hebei china
MOQ :
1set
Price :
Face to face discussion
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000sets/month
Delivery Time :
5days
Packaging Details :
no packing
Usage :
Water Well Drilling Rig Machine
Weight :
4.5T
Drilling depth :
180
Dimension(L*W*H) :
3800*1500*2200mm
Drilling hole diameter :
140-254mm
One-time advance length :
3m
Walking speed :
2.5km/h
Climbing angles (Max.) :
30
Equipped capacitor :
55KW
Drill pipe diameter :
76/89mm
Description
Fast Rock Drilling Machine Pneumatic Percussive Water Well Drilling Rig Machine
Introduction of Water Well Drilling Rig Machine
ST-180 series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata.
Water Well Drilling Rig Machine​ Main Parameters
Model
ST180
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg

Advantages of ST180 well drilling truck:


1. The engine uses Anhui quanchai 55kW turbocharged engine;
2. Walking device: walking motor with reducer, long service life;
3. Hydraulic oil pump; parallel transmission design, separate single oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost;

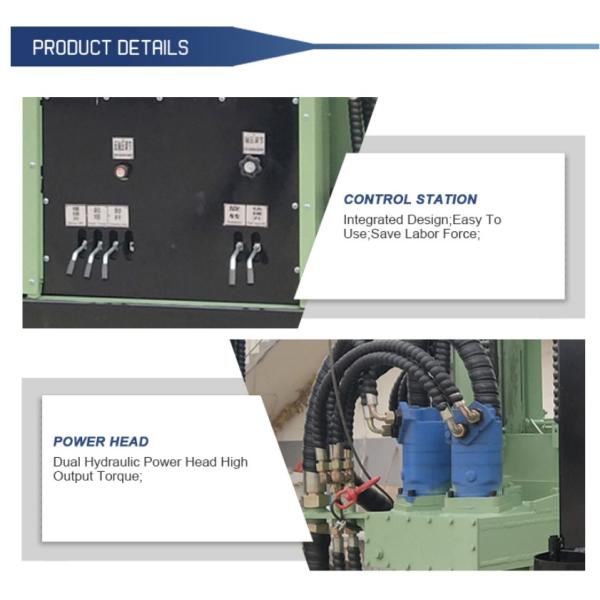

4. Power head device; gearbox integrated casting, double motors provide power, high torque, durable, low maintenance cost;

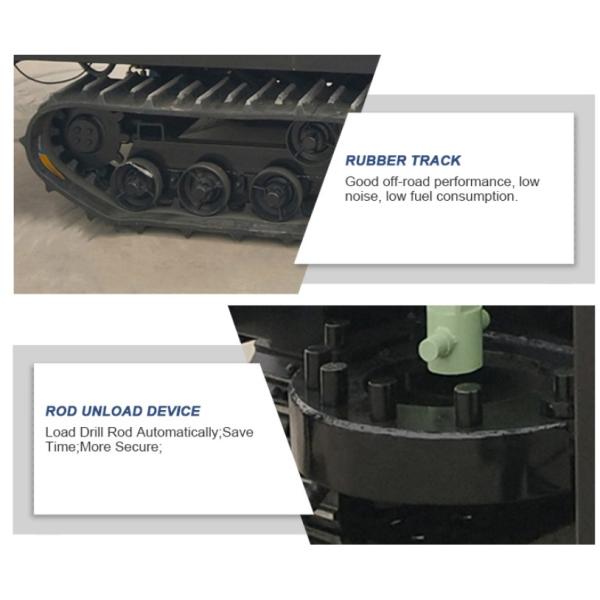

5. Drilling chassis; professional excavator chassis, durable, heavy load, wide chain plate, less damage to hard road;

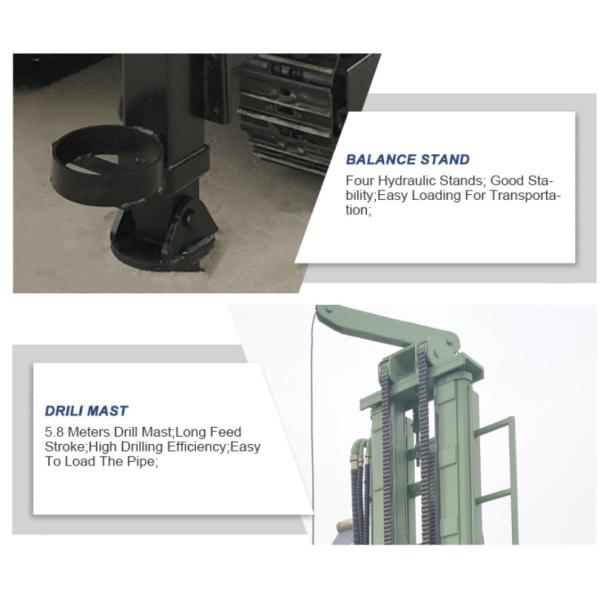

6. Lifting force; design of composite boom, small size, long stroke, double cylinder lifting, large lifting tonnage;
7. The lifting boom of each drilling rig is equipped with a limiter to protect the oil cylinder and work safety;
8. Each hydraulic oil pipe is wrapped with a protective jacket to prolong the service life of the oil pipe.
