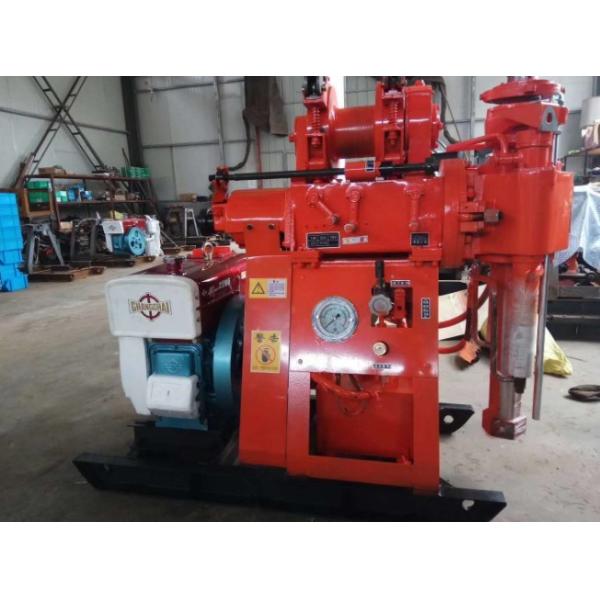

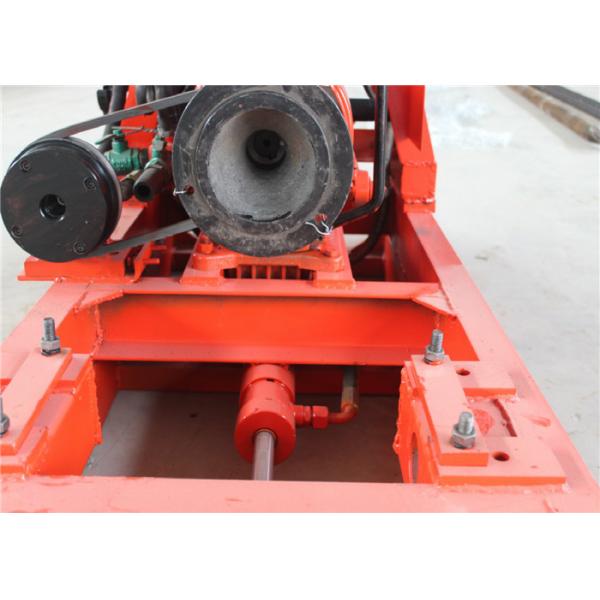

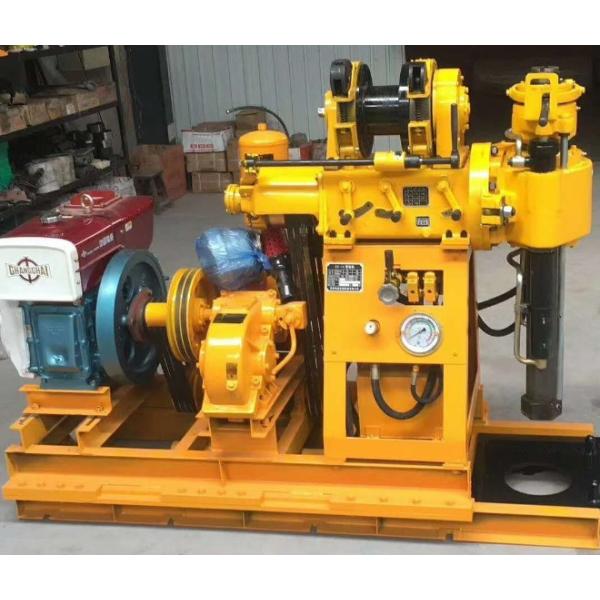

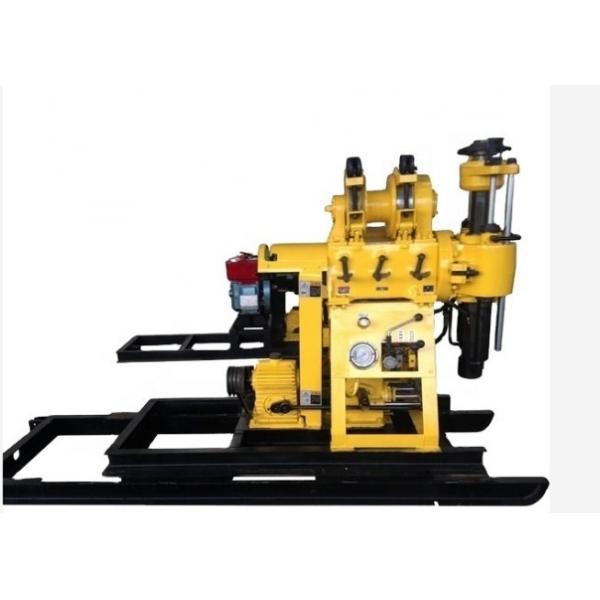

Anchor Rod Engineering 15kw Water Well Drilling Rig Machine
Anchor Rod Engineering 15kw Water Well Drilling Rig Machine
Anchor Rod Engineering 15kw Water Well Drilling Rig Machine
Anchor Rod Engineering 15kw Water Well Drilling Rig Machine
Specifications
Brand Name :
ShiTan
Model Number :
GK-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
Within 7-12 days
Packaging Details :
customized
Product Name :
Customized Cheapest Price GK200 Water Well Drilling Rig Machine
Power Type :
Diesel
Usage :
Coal, Oil
Voltage :
380V
Power(W) :
15KW
Dimension(L*W*H) :
1820*980*1400mm
Weight :
670kg
Application :
water well drilling rig mobile drilling rig ,hole hammer drill rig,drilling well
After-sales service provided :
Video technical support
Warranty :
2 years
Description

Customized Cheapest Price GK200 Water Well Drilling Rig Machine

Brief Introduction of Customized Cheapest Price GK200 Water Well Drilling Rig Machine

GK-200 engineering drill is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.

Water Well Drilling Rig Machine Specifications

1, drilling ability
Drilling diameter (mm) 200 76 46
Depth of drilling (m) 60 225 290
Drill pipe diameter (mm) 50 42
Vertical axis inclination range 0°~360°
2,Turntable
Rotating speed(r/min) Forward 900 475 388 205 157 68
Reversal 256 85
Maximum torque 2000N·m
Rack movement schedule 400mm
Vertical axis to process 450mm
Cylinder maximum feed force 29KN
The maximum jacking force of the cylinder 39KN
3, lifts
Reel diameter 135mm
Wire rope diameter 12.5mm
Reel capacity 30m
Single rope lifting force 30KN
Single rope maximum lifting speed 0.27 0.64 0.83 1.58 1.64
(Second floor)(m/s)
4,Oil pump
Model number CBF-F420-ALPL gear oil pump
Displacement 20mL/r (Flow 33L/min)
Rated speed 2500r/min
preset pressure 20MPa
greatest pressure 25MPa
5, power machine model Power Rotating speed weight
(1) Motor Y160L-4 15KW 1460r/min 144kg
(2) Diesel Engine Changchai ZS1110 14.7KW 2200r/min 180kg
6, rack
Type: Slide type (with sliding base)
Drill stroke 400mm
Let the opening distance 270mm
7.Rig Dimensions (length × width × height) 1820×980×1400mm
8,rig weight (including diesel engine) 850kg

Water Well Drilling Rig Machine Applications:

1. Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
