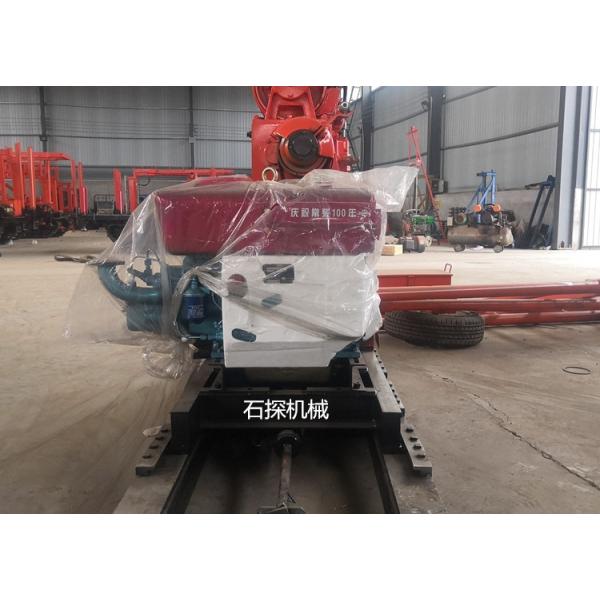

Xy-1a 150 Meters Portable Water Well Drilling Rig Hydraulic
Xy-1a 150 Meters Portable Water Well Drilling Rig Hydraulic
Xy-1a 150 Meters Portable Water Well Drilling Rig Hydraulic
Xy-1a 150 Meters Portable Water Well Drilling Rig Hydraulic
Specifications
Brand Name :
Shitan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig
Drilling Way :
Rotary
Geological :
soil, rock, hard rock,
Transport Package :
Wooden Case
Chuck :
Hydraulic Chuck
Usage :
Water Well ,Soil testing,geological exploration
Net weight :
600 KG
Warranty :
1 Year
Drill angle :
90°-75°
Matched power(diesel power) :
15kw/2200r/min
Active drill rod :
53/59*4200mm
Rod diameter :
50,60mm
Description

XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig

XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig​ Introduction

XY-1A Drilling Rig is a high-speed rig suitable for census exploration, Geophysical exploration,road and building exploration and blasting holes and other drilling projects, We can use alloys, diamonds and composite sheets bits to drill depending on the bottom layer difference.
It can drill 2-9 grade sandy clay and rock formations, etc.

XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig Parameters

Drill Swivel Head

Drilling depth

 Max.150m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.150m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm

XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig Advantages

(1) The rig has oil-pressure actuating system to improve drilling efficiency and reduces the workers’ physical labor.
(2) Uses ball joint instead of chunk to back the lever conveniently and safely without stopping machines.
(3) It has a manometer to show the pressure in the hole.
(4) Operated conveniently as the handles are centralized.
(5) It has compact structure, as rigs, pumps and diesel engines are on one pedestal so that save the space.
(6) Suitable to work on the plain and mountainous areas for it is moved easily with lightweight and simple to disassemble.

XY-1A Shitan Quality Brand 150 Meters Hydraulic Portable Water Well Drilling Rig FAQ

1. Q: Are you trading company or manufacturer?

A: We are original equipment manufacturer.

2. Q: How long is your delivery time?

A: It is according to the model and quantity.

Generally it is 3-5 days if the machines are in stock.

It will be 15-30 days if you want to customize the machines.

3. Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer you the sample machine.

It's not free. Customers should charge the freight cost of express or delivery .

4. Q: What is your payment terms ?

A: We accept T/T, Western Union.
