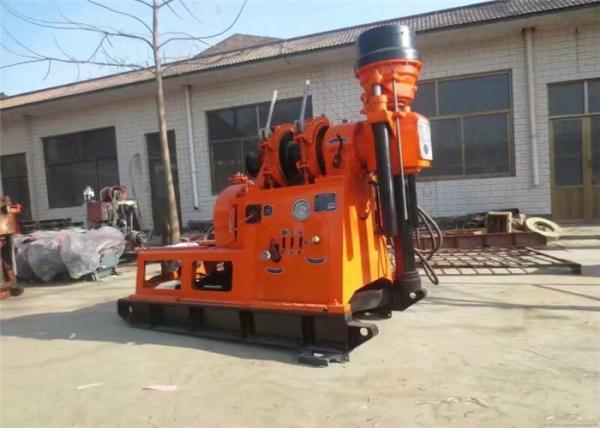

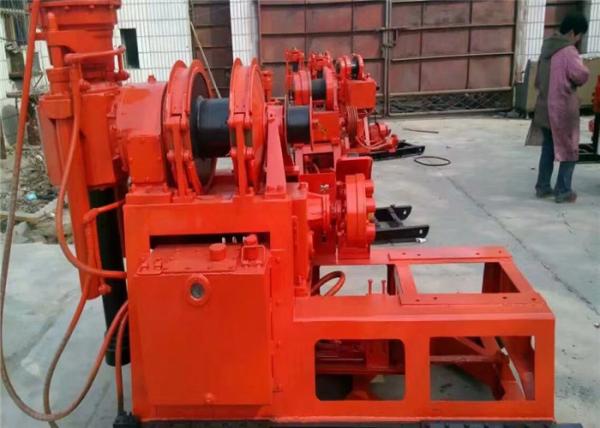

Diamond 200M Water Drilling Equipment ISO Approved
Diamond 200M Water Drilling Equipment ISO Approved
Diamond 200M Water Drilling Equipment ISO Approved
Diamond 200M Water Drilling Equipment ISO Approved
Specifications
Brand Name :
ShiTan
Model Number :
ST100B
Certification :
ISO
Place of Origin :
China
MOQ :
1 SET
Price :
USD4800-USD6800/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability :
2000sets/year
Delivery Time :
10days after prepaid
Packaging Details :
Plastic film and Standard export wooden box
Name :
Core Drilling Rig
Guarantee time :
1 year
Drilling depth :
200M
Weight :
500kg
Service :
On time
OEM :
OK
Description

ST100B Mining and Geotechnical Diamond Core Drilling Rig For Exploration

WE OFFER YOU:

1. FACTORY DIRECT PRICE.
2. NICE QUALITY.
3. QUICK SHIPPING WITHIN 7 DAYS.
4. MOQ , 1 SET OK . SMALL ORDER WELCOME.
5. ONLINE PAYMENT.

6. SUPPORT 7 DAYS REFUND.

7. AFTER SALES SERVICES 24/7 ON LINE

Diamond 200M Water Drilling Equipment ISO Approved

Technical Specification of Core Drilling Machine

ST-200 Type
Drill Swivel Head

Drilling depth

 Max.200m

Spindle speed

(4-speed)

115 230 505 1010r/m

Hole diameter

 Max.300m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 20KN Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 16.2KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1730*860*1360mm

Core drilling Rig Advantage

★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work
★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable
★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole
★ Handle centered ,convenient operation
★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas.
★ Adopting large drive pipe,double guide rod, increase the steady
Diesel engine or Electrical moto
