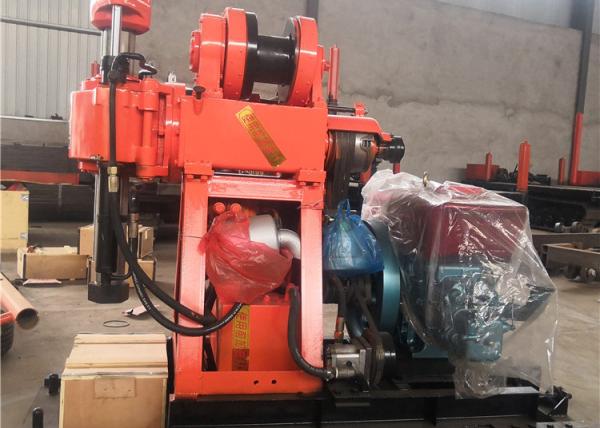

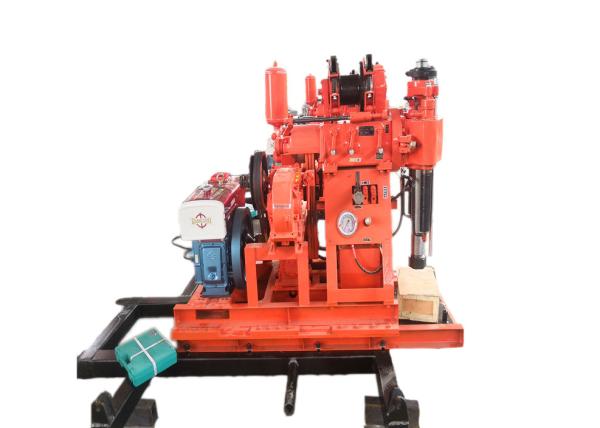

Hydraulic Diesel 100m Portable Water Drilling Machine
Hydraulic Diesel 100m Portable Water Drilling Machine
Hydraulic Diesel 100m Portable Water Drilling Machine
Hydraulic Diesel 100m Portable Water Drilling Machine
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-100
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Power Type :
Diesel
Voltage :
220V/380V
Power(W) :
15KW
Weight :
500kg
Type :
Rotary Drilling Rig,Core Drilling Rig
After-sales service provided :
Field maintenance and repair service
Product name :
Water Well Drilling Rig
Power(w) :
20HP
Drilling diameter :
75-300mm
Description
Hydraulic Diesel 100m Portable Water Drilling Machine
Portable Water Drilling Machine Features
ST-100series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy.

XY-1 Portable Water Well Drilling Rig Tech Parameter:

Drill Information Swivel Head

Drilling depth

 Max.100m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.100m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm
Portable Water Drilling Machine characteristic
1,It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3, It has hole bottom pressure gauge to be easy to master the situation in the hole.
4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.
How to maintain full hydraulic water well drill in winter

1. cleaning and maintenance:

The main parts for cleaning and maintenance of full hydraulic water well drilling rig in winter are the appearance of chassis and working device. Descaling and decontamination shall be carried out to keep the appearance of construction machinery clean and tidy. Meanwhile, attention shall be paid to whether the devices and components are damaged and whether the leakage parts are worn during the cleaning process, so as to make early preparations for the next maintenance.

2. replace gear oil and add lubricating grease:

The weather is dry in winter, especially the geological conditions of the construction site are complex, so it is more necessary to replace the gear oil of the full hydraulic water well drilling rig and add lubricant in time. While adding lubricant, check the wear condition, replace it in time, and clean the interior.

3. check the hydraulic system for leakage:

For most full hydraulic water well drilling rigs and anchor drilling rigs, the hydraulic system is used as the main component, and the role of the hydraulic system is extremely important. The temperature is particularly low in winter, and the seals of the hydraulic system of construction machinery will expand and contract, which is easy to cause leakage, and often has a certain impact on the normal operation of the hydraulic system. In order to avoid the leakage fault of the hydraulic system, the seals of the hydraulic system should be systematically inspected before entering the severe winter, and the seals at the leakage parts should be replaced in time.

Hydraulic Diesel 100m Portable Water Drilling MachineHydraulic Diesel 100m Portable Water Drilling MachineHydraulic Diesel 100m Portable Water Drilling MachineHydraulic Diesel 100m Portable Water Drilling MachineHydraulic Diesel 100m Portable Water Drilling MachineHydraulic Diesel 100m Portable Water Drilling Machine
