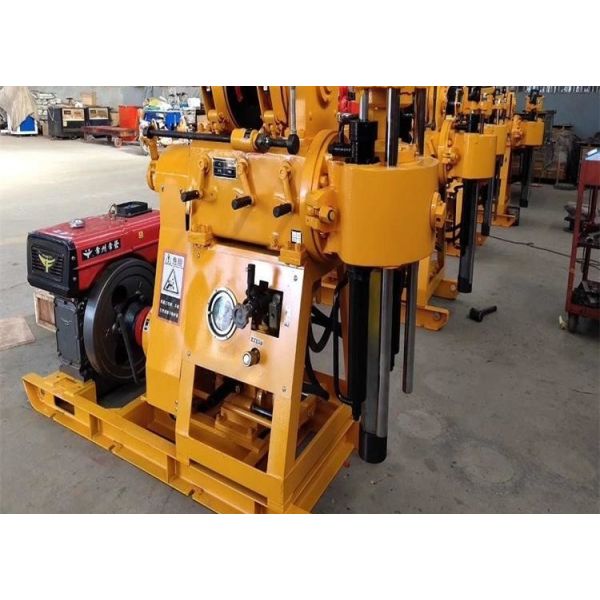

Structure Prospecting Geological Drilling Machine 300 Meters Detph
Structure Prospecting Geological Drilling Machine 300 Meters Detph
Structure Prospecting Geological Drilling Machine 300 Meters Detph
Structure Prospecting Geological Drilling Machine 300 Meters Detph
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
Gy 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GY 200 Geological Drilling Rig
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Usage :
Water Well,geological exploration
Voltage :
380V
Power(W) :
16.2kw
Dimension(L*W*H) :
1730*860*1360mm
Weight :
585kg
Drilling Depth :
300m
Drilling Diameter :
75-200mm
Engine :
Diesel Power
Description

Easy Movement 300 Meters Detph Farming Geological Drilling Rig For Civil Construction

GY 200 Geological Drilling Rig Introduction:

GY-200 's drilling depth is 300 meters ,hole diameter is 300 mm.It was designed for geologic structure prospecting of industrial and civil constructions, such as railways, bridges and hydroelectric projects. The drilling machine could also being used for small calibre piling foundation works

GY 200 Geological Drilling Rig Technical Parameters:

Drilling depth 60-295m
Drilling diameter 300mm 76 46mm
Drill pipe diameter 50 42mm
Spindle Turnable Angle 0-360degree
Net weight(excluding the power machine) 670kg
Dimension(length*width*height) 1820*980*1400mm
Revolving Plate
Spindle speed 900 475 388 205 157 68 r/min
Maximum torque 2000N*m
Driving travel 400mm
Maximum Cylinder driving force 2,9000N
Maximum Cylinder lifting force 3,9000N
Lifter
Lifting capacity 3,0000N
Bobbin line speed (2 layers) 0.27 0.64 0.83 1.58 1.64 m/s
Bobbin diameter 135mm

GY 200 Geological Drilling Rig Technical Advantage:

Drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.

Engineering Geological Survey
It can be divided into: (1) geophysical exploration: lithology, groundwater level, karst cave distribution, etc. are divided according to the conductivity, magnetism, density and the propagation speed of elastic wave in different underground strata and media (water, cavity, rock, etc.). Guide drilling. (2) Drilling: combined with pit (groove) exploration. 3) penetration: it is both an exploration method and an in-situ test method.

What is the best time to do soil sampling?

Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.
