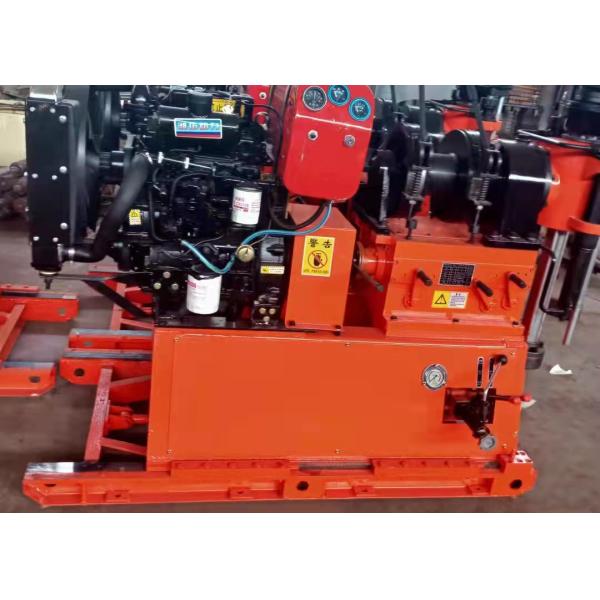

Gy 200 Hydraulic Borewell Machine Vertical Crawler Mounted Portable
Gy 200 Hydraulic Borewell Machine Vertical Crawler Mounted Portable
Gy 200 Hydraulic Borewell Machine Vertical Crawler Mounted Portable
Gy 200 Hydraulic Borewell Machine Vertical Crawler Mounted Portable
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
Gy 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GY 200 Vertical Crawler Mounted Portable Hydraulic Borewell Machine
Condition :
New
Type :
Core Drilling Rig,water well drilling rig
Power Type :
Diesel
Usage :
Water Well,geological exploration
Voltage :
380V
Power(W) :
16.2kw
Dimension(L*W*H) :
1730*860*1360mm
Weight :
585kg
Drilling Depth :
300m
Drilling Diameter :
75-200mm
Engine :
Diesel Power
Description

GY 200 Vertical Crawler Mounted Portable Hydraulic Borewell Machine

GY 200 Hydraulic Borewell Machine:

It is a light multifunctional engineering project prospecting drilling rig,with 300 meters depth and 300mm hole diameter, It was designed for geologic structure prospecting of industrial and civil constructions.

GY 200 Hydraulic Borewell Machine Technical Information:

Drilling depth 60 225 295m
Drilling hole diameter 300 76 46mm
Pipe rod diameter 50 42mm
Spindle Turnable Angle 0-360degree
Net weight(excluding the power machine) 670kg
Dimension(length*width*height) 1820*980*1400mm
Revolving Plate
Spindle speed 900 475 388 205 157 68 r/min
Maximum torque 2000N*m
Driving travel 400mm
Maximum Cylinder driving force 2,9000N
Maximum Cylinder lifting force 3,9000N
Lifter
Lifting capacity 3,0000N
Bobbin line speed (2 layers) 0.27 0.64 0.83 1.58 1.64 m/s
Bobbin diameter 135mm

GY 200 Hydraulic Borewell Machine Features

1.Wide range if P.R.M and well-set gears

2.Great torque in low P.R.M, fit for coring drilling and piling hole works.

3.Mobile cylinder installed so that the drilling machine got a free travel of 300mm, ensured easy remove of drilling stem.

4.Easy to handle, high efficiency, oil hydraulic drive, low labour intensity.

5.With light single derrick cell, the derrick can be dismantled and handled easily and safely.

GY 200 Hydraulic Borewell Machine Application

1.1.1 engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings.

1.1.2 geological core drilling and physical survey.

1.1.3 drilling of small grouting holes and blasting holes.

1.1.4 small water well drilling
