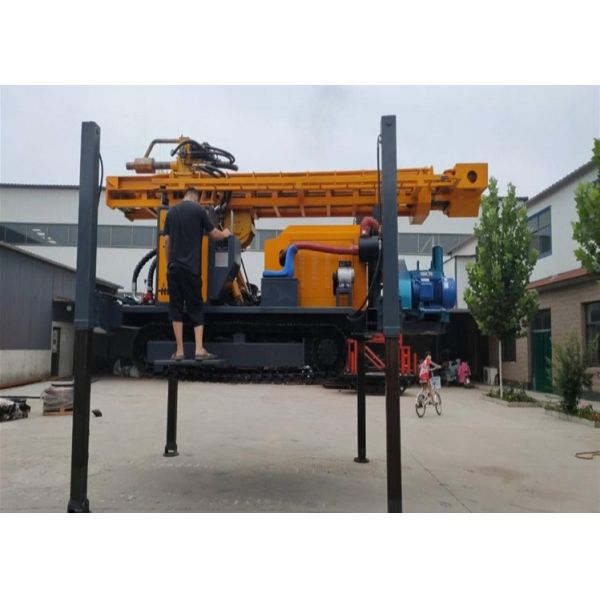

Farm Watering Agriculture Borehole Drilling Machine St 300
Farm Watering Agriculture Borehole Drilling Machine St 300
Farm Watering Agriculture Borehole Drilling Machine St 300
Farm Watering Agriculture Borehole Drilling Machine St 300
Specifications
Brand Name :
ShiTan
Model Number :
ST-300
Certification :
ISO,CE,SGS,TUV,BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
5000 sets per year
Delivery Time :
7-10 days
Packaging Details :
standard export packing
Product Name :
ST 300 Borehole Drilling Rig Machine
Drilling Depths :
300 Meters
Place Of Origin :
China (Mainland)
Model Numbe(m) :
ST-300
Voltage :
Differ
Open Hole Caliber :
75m'm
Warranty :
1 year
Material :
Steel
Condition :
New
OEM :
Customized Drilling Rig
Color :
Yellow ,Red
Description

Farm Watering Agriculture ST 300 Borehole Drilling Rig Machine

ST 300 Borehole Drilling Rig Machine Descrption:

ST 300 drilling rig is efficient and multifunctional drilling equipment,it has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in water well drilling, civil drilling, geothermal drilling and other fields

ST 300 Borehole Drilling Rig Machine Parameter:

Drilling capability

 Drilling depth m 300(φ89)
Max. diameter of working floor mm φ330
Feeding system Max. liting capacity kN 160
Max. feeding capacity kN 80
Max. lifting speed m/min 32(25)
Max. feeding speed m/min 60(48)
Stroke mm 3800(7000)
Top drive Max. torque N.m 6600/3300
Max. speed r/min 95/190
I.D mm φ45
Deck engine Type YC4A125-T30
Rated power kW 92
Tool winch Hoisting capacity kN 15
Breakout device Max. breakout torque N.m 18000
Mud pipe I.D mm φ55
Max. pressure MPa 8
Chassis Highest speed km/h 2.4
Max. climbing gradient % 39
Max. ground clearance of crawler mm 1000
Max. inner distance between front support legs mm 2600
Max. iner dstance between back support legs mm 2700
Working dimension mm 3980*3130*6500
(3980*3130*8100)
Transportation dimension mm
4450(3980)*1800*2400
(6050(3980)*1800*2400)
Weight t 8.7(9.7)


ST 300 Borehole Drilling Rig Machine Advantages:

1.This is a mature of efficient and versatile hydraulic rig. It is mainly applicable to the drilling process of wells, monitor boreholes, and geothermal boreholes.
2.When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with a penetration speed being dozens of times quicker than conventional rotation rigs.
3.Hydraulic supporters facilitate the rig erection on site without crane.
4.Smaller size makes it adaptable to various kinds of construction sites.

ST 300 Borehole Drilling Rig Machine Applications:

Widely used in industrial and agricultural water conservancy projects, test wells, and another exploration drilling. In particular, geothermal heating drilling can also meet various projects of engineering foundation reinforcement, loose gravel drilling, and rock formation connection.
Our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have comprehensive cost-effectiveness.

How can we do a good job in the maintenance of well drilling rig?

1. Pay attention to check whether the bolts and nuts of water and gas pipelines and various accessories of the drilling rig are firm at any time

2. . Always check the lubricating oil condition of the wind motor

3. . When the working face is immersed in water, a large-diameter drill head shall be used to insert the drill pipe when opening the hole, so that the drill pipe is 1-2 meters above the water surface to prevent mud and rock slag from falling into the hole
