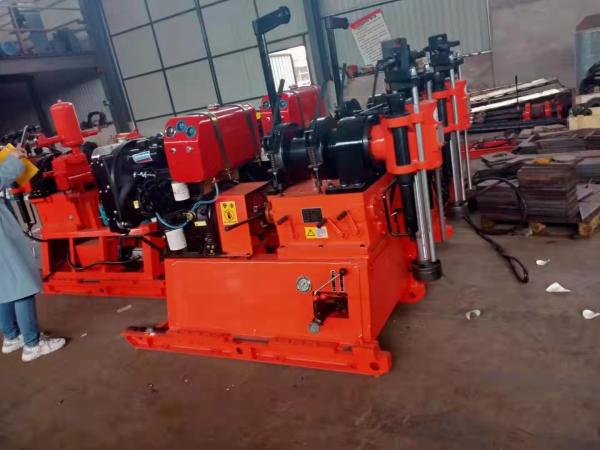

300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200
300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200
300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200
300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
Gy 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GY 200 Hydraulic Borewell Machine
Condition :
New
Type :
Core Drilling Rig,water well drilling ,exploration
Power Type :
Diesel
Voltage :
380V
Power(W) :
16.2kw
Dimension(L*W*H) :
1730*860*1360mm
Weight :
585kg
Drilling Depth :
300m
Drilling Diameter :
75-200mm
Engine :
Diesel Power
OEM :
acceptable
Description

300 Meters Depth Prospecting Geological Exploration GY 200 Hydraulic Borewell Machine

GY 200 Hydraulic Borewell Machine Introduction:

300 meters ,hole diameter 300 mm GY 200 Hydraulic Borewell Machine,It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.

GY 200 Hydraulic Borewell Machine Technical Details:

Drilling depth 60-295m
Drilling diameter 300mm 76 46mm
Drill pipe diameter 50 42mm
Spindle Turnable Angle 0-360degree
Net weight(excluding the power machine) 670kg
Dimension(length*width*height) 1820*980*1400mm
Revolving Plate
Spindle speed 900 475 388 205 157 68 r/min
Maximum torque 2000N*m
Driving travel 400mm
Maximum Cylinder driving force 2,9000N
Maximum Cylinder lifting force 3,9000N
Lifter
Lifting capacity 3,0000N
Bobbin line speed (2 layers) 0.27 0.64 0.83 1.58 1.64 m/s
Bobbin diameter 135mm

GY 200 Geological Drilling Rig Technical Advantage:

Drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc

is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc

What is the best time to do soil sampling?

Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.

The principle of core drilling machine is basically the same, and the main components are drilling machine, drill pipe, drill bit, etc. The drill provides power to drive the drill pipe and drill bit to drill and obtain deep core samples. According to different depths and strata, corresponding to different types of drilling rigs

GY 200 Drilling Rig Geological Survey:
It can be divided into: (1) geophysical exploration: lithology, groundwater level, karst cave distribution, etc. are divided according to the conductivity, magnetism, density and the propagation speed of elastic wave in different underground strata and media (water, cavity, rock, etc.). Guide drilling. (2) Drilling: combined with pit (groove) exploration. 3) penetration: it is both an exploration method and an in-situ test method.

300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200

300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200

300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200

300 Meters Depth Borewell Drilling Machine Prospecting Geological Exploration Gy 200
