Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling
Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling
Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling
Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling
Specifications
Brand Name :
SHITAN
Model Number :
ST-350
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Product Name :
ST 350 Meters Pneumatic Borehole Machine Drilling Rig Water Well Drilling Rig Machine
Condition :
New
Origin :
Jinzhou,China
Power(W) :
92Kw/2200rpm
Dimension(L*W*H) :
6.4m×2.1m×2.6m
Weight :
10T
Drilling depth :
350m
Warranty :
1 Year
OEM :
Customized
Color :
Customized
Engine :
Diesel Engine
Application :
Water Well Drilling
Description

Customized Drilling Rig Equipment 350 Meters Water Well Drilling Pneumatic Borewell Machine

ST 350 Pneumatic Borewell Machine Breif Introduction:

ST350 series is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The water well drilling rig machine can work on different formations, well drilling diameter up to 350mm.

ST 350 Pneumatic Borewell Machine Parameter:

Model ST 350 Pneumatic Borewell Machine
Drilling depth 350m
Dia.hole φ140-325mm
Advance Length one time 6.6m
Working pressure 1.7-3.0MPa
Air consumption 17-35m³/min
Length of rod 1.5m,2m,3m,6m
Dia. Of rod φ76, φ89,φ102,φ114
Lifting power 24T
Rotation torque 8500-11000N.m
Rotation Speed 40-70r/min
Diesel Engine Yuchai
Engine Power 92Kw/2200rpm
Travelling speed 0-2.5 Km/h
Climb capacity 30°
Weight 9500kgs
Dimension 6000x2200x2900mm
Application Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer 4",5",6",8",10" Drill hammer or CIR110, 130, 150,170

ST 350 Pneumatic Borewell Machine Advantages

1.Can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.

2.They can be used in all conditions based on pore-forming purpose.
3.They are widely used in industrial and agriculture water project, testing well and other exploration borehole.
In particular, drilling hole for geothermal heating,
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

FAQ ST 350 Pneumatic Borewell Machine

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is in Jinzhou,Hebei, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advance, 70% T/T before delivery.
Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
Q8: Which trade term can you accept?
A8: Available trade terms: FOB, CIF, CFR, EXW, , etc.

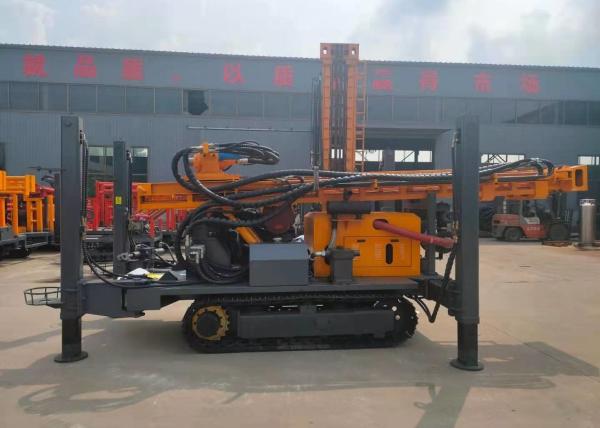

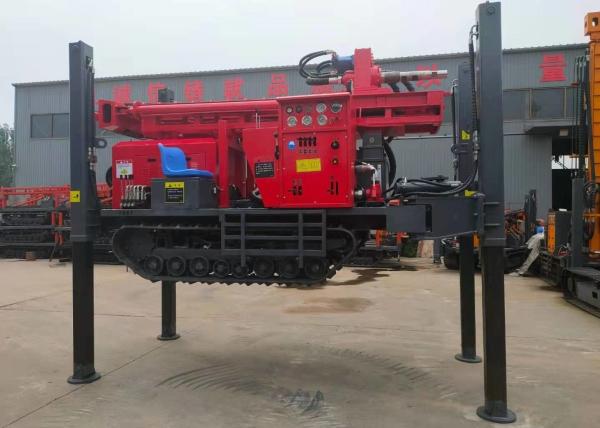

Product Display

Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling

Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well DrillingDiesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling

Product Delivery

Diesel Engine Customized 350meters Pneumatic Borewell Machine Water Well Drilling
