22kw OEM 100 Meters Hydraulic Borewell Machine
22kw OEM 100 Meters Hydraulic Borewell Machine
22kw OEM 100 Meters Hydraulic Borewell Machine
22kw OEM 100 Meters Hydraulic Borewell Machine
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
XY-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
Core Drilling Rig XY-1 100 Meters Hydraulic Borewell Machine
Drill Depth :
100m
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Usage :
Water Well,geological exploration
Voltage :
220v/380v
Power(W) :
22kw
Weight :
880Kg
Engine :
Diesel or Electric Motor
Application :
Core Sampling, Water Well
Description

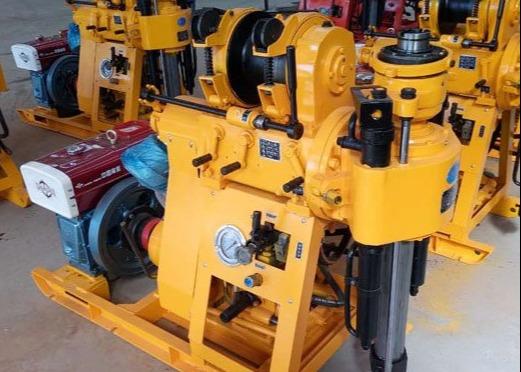

Core Drilling Rig XY-1 100 Meters Hydraulic Borewell Machine

XY-1 100 Hydraulic Borewell Machine Product Introduction:

XY-1 small drill rig is widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or larger according to clients requirement. Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.

XY-1 Hydraulic Borewell Machine Product Parameter:

XY-1 Drilling Rig Specification
Drilling rig
Drilling hole diameter
mm
110
Drilling depth
m
100
Drill pipe diameter
mm
42
Borehole inclination
°
90°～75°
Rig dimension(L×B×H)
mm
1640×1030×1440
Drill weight(except engine)
kg
500
Gyroscope
spindle speed(three block)
r/min
142,285,570
spindle travel
mm
450
max moving speed
m/min
3
vertical max feed force
KN
15
vertical max lift
KN
25
Windlass
hoisting capacity(single speed rope)
KN
10
drum speed
r/min
55,110,220
drum circumferential velocity
m/s
0.42,0.84,1.68
drum diameter
mm
145
wire rope diameter
mm
9.3
rope weight
m
27
the diameter of the brake
mm
230
brake band width
mm
50

XY-1 Hydraulic Borewell Machine Product Features:

1.with oil pressure automatic feed mechanism, it can improve drilling efficiency and reduce workers' physical work.
2.replace chuck and can perform non-stop rod reversing. It is easy to operate ,safe and reliable.
3.a pressure gauge is equipped at the bottom of a hole to grasp the condition of the hole.
4.the centralized handle is easy to operate and easy to maintain.
5.drilling rig, pump and diesel engine are on the same base.
6.light weight and easy decomposition to quick to move, so it is applicable to plains and mountainous areas.

XY-1 Hydraulic Borewell Machine Our Service

Warranty: 2-3 years.

After service: Life-time.

Non-human factors, we will provide free spare parts and technical guidance.

We charge the cost of spare parts, but we provide technical guidance and other after-sale service for free.

Whole-hearted service for pre-sales and after-sales everyday!

22kw OEM 100 Meters Hydraulic Borewell Machine22kw OEM 100 Meters Hydraulic Borewell Machine22kw OEM 100 Meters Hydraulic Borewell Machine
