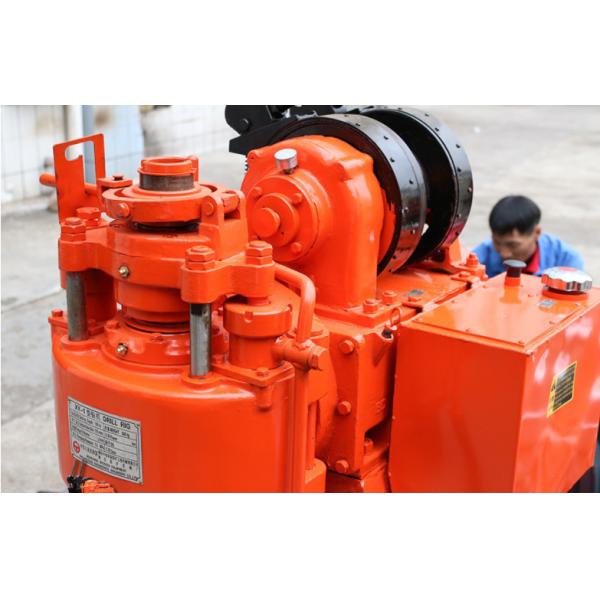

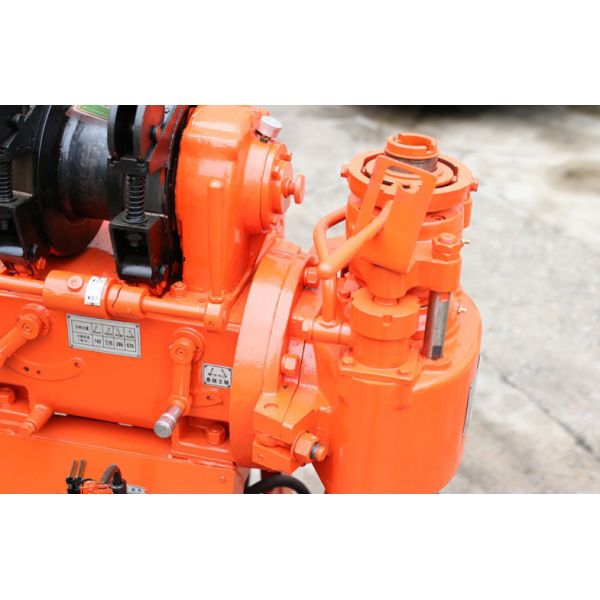

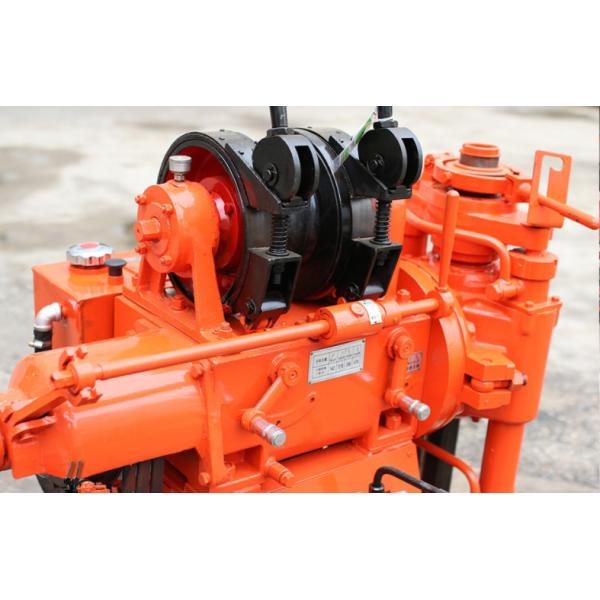

XY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil Use
XY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil Use
XY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil Use
XY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil Use
Specifications
Brand Name :
JINZHOUSHITAN
Model Number :
XY-1A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD4200-4800/SET
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
normal wooden package
Product Name :
Pneumatic Borewell Machin
Weight :
600kg
Drill Depth :
Max. 150m
Drill Diameter :
300mm
Condition :
New
Application :
Water Well Drilling ,Soil Testing,Geological exploration
Material :
Steel
Warranty :
24 months
Drill rod diameter :
42mm、50mm
Angle range :
90-75
Model(diesel engine :
1105
Spindle stroke :
450kmm
Description

XY-1 Well Drilling Rig, High Speed Geological Exploration Coring Rig Full Hydraulic Well Drilling Rig For Civil Use

XY -1 Portable Water Well Drilling Rig Description

XY-1 drilling rig is a kind of portable shallow hole drilling rig with oil pressure feeding. It is suitable for general survey, geophysical exploration, road and building exploration and small water well drilling.

XY-1 Portable Water Well Drilling Rig Parameter:

XY- 1 Portable water well drilling rig
Drill Swivel Head

Drilling depth

 Max.100m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.100m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm

XY-1 Portable Water Well Drilling Rig Main Attentions

1. It is equipped with oil pressure automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

2. Adopting the ball clip type clamping mechanism, the rod can be reversed without stopping the machine, which is easy to operate, safe and reliable.

3. The handle is centralized and easy to operate. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.

4. The structure is compact. The drilling rig, water pump and power engine (diesel engine or motor) are assembled on the same base, occupying a small airport area. Light weight, strong decomposition, easy to move.

XY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil UseXY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil UseXY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil UseXY-1 Full Hydraulic 150m Deep Well Drilling Rig For Civil Use
