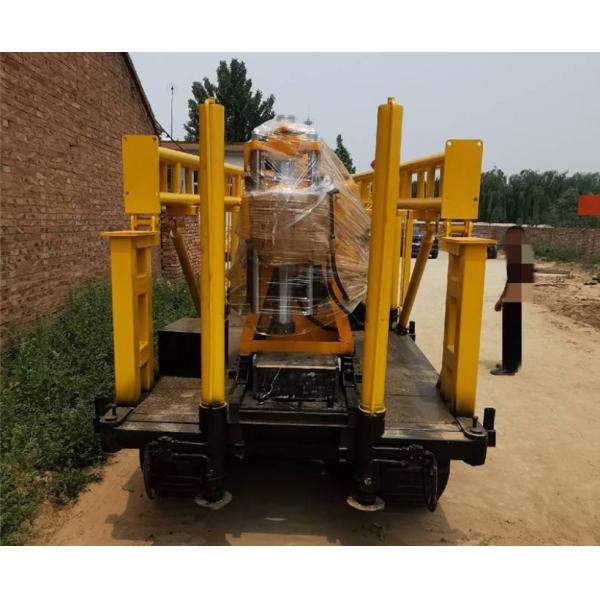

Easy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT Drilling
Easy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT Drilling
Easy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT Drilling
Easy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT Drilling
Specifications
Brand Name :
Shitan
Model Number :
200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Portable Water Well Drilling Rig
Drilling Way :
Rotary
Geological :
soil, rock, hard rock,
Transport Package :
in Wooden Case
Chuck :
Hydraulic Chuck
Usage :
Soil sample
Net weight :
600 KG
Warranty :
1 Year
Drill angle :
90°-75°
Matched power(diesel power) :
15kw/2200r/min
Active drill rod :
53/59*4200mm
Rod diameter :
50,60mm
Description

Easy To Move Crawler Type Drilling Rigs Mounted On Track For Soil Testing, SPT Drilling

Portable Water Well Drilling Rig troduce

A self propelled track/crawler drilling platform are introduced to make the transporting of the drilling rigs and accessories easy Various model can be mounted to the track/crawler, such as GY-100, GY-150 series, GY-200,XY-1A, GK-200 series. Because Drilling Rig can slide on frame to give space to handle the drilling strings, this makes them very suitable model to be mounted on track/crawler. Also they are powerful rigs capable of drilling up to 150m/200m respectively.
Mud pump also can be mounted. Drilling rods, core barrels and other tools can put on the platform, it is very convenient to move the whole system.The track/crawler can be sold alone, or together with the mounted rigs and mud pumps.

Portable Water Well Drilling Rig parameters

Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm

Drilling rig characteristics

1,drilling rig has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Easy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT DrillingEasy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT DrillingEasy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT DrillingEasy Move 15kw Crawler Mounted Drill Rig For Soil Testing SPT Drilling
