Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area
Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area
Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area
Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
Gk 200 Soil Testing Drilling Rig
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Usage :
Water Well,geological exploration
Voltage :
380V
Power(W) :
16.2kw
Dimension(L*W*H) :
1730*860*1360mm
Weight :
585kg
Drilling Depth :
200m
Drilling Diameter :
75-200mm
Engine :
Diesel Power
Spindle Speed :
30-1050r/min
Description

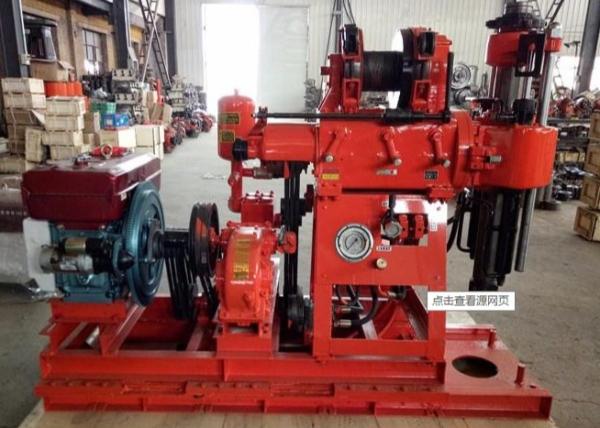

Personal Portable Gk 200 Soil Testing Drilling Rig

Gk 200 Soil Testing Drilling Rig Introduction:

Gk200 depth is 200 meters ,and hole diameter is from 75mm-300mm.This drilling rig is portable ,easy movement and cheap price.

This kind drilling rig is very popular in the market ,and it with competitive price and quality .

Gk 200 Hydraulic Borehole Drilling Rig Machine Technical Data:

GK 200 Soil Testing Drilling Rig Machine
Drilling hole diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5

Gk 200 Soil Testing Drilling Rig Avantages

1) It has hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity.
(2) The drilling rig is equipped with a ball clamping mechanism and a hexagonal active drill pipe, which can reverse the rod without stopping the machine. The operation is convenient and reliable.
(3) It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
(4) The handle is centralized and easy to operate.
(5) The drilling rig has compact structure, small volume, light weight, strong decomposability and is easy to move. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.

Gk 200 Soil Testing Drilling Rig Scope

It is suitable for geological survey, geological core drilling, small grouting holes, blasting holes and small water well holes of railway, water conservancy, bridge, dam foundation and other buildings. Diamond bits, alloy and steel particles can be selected according to different strata.

How can we do a good job in the maintenance ?

1. check whether the bolts and nuts of water and gas pipelines and various accessories of the drilling rig are firm at any time

2. . Always check the lubricating oil condition of the wind motor

3. . When the working face is immersed in water, a large-diameter drill head shall be used to insert the drill pipe when opening the hole, so that the drill pipe is 1-2 meters above the water surface to prevent mud and rock slag from falling into the hole

Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area

Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area

Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area

Two Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural AreaTwo Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural AreaTwo Hundred Meters Soil Testing Rig Environmental Protection Sampling For Rural Area
