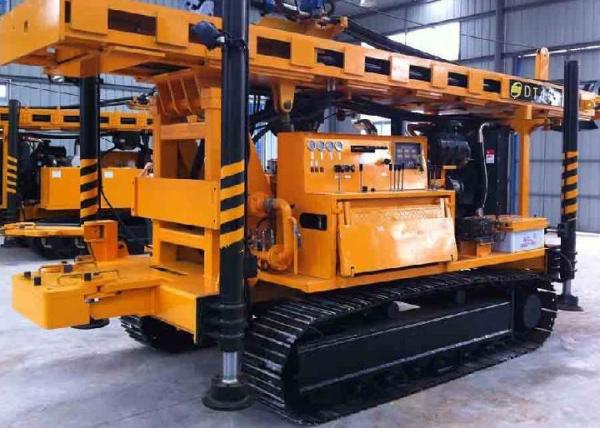

St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
Specifications
Brand Name :
ShiTan
Model Number :
ST-300
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
5000 sets per year
Delivery Time :
7-10 days
Packaging Details :
standard export packing
Price :
Customzied Quotation list
Product Name :
Crawler Mounted Drill Rig
Drilling Depths :
300 Meters
Model Numbe(m) :
ST-300
Place Of Origin :
China (Mainland)
Voltage :
Differ
Open Hole Caliber :
75m'm
Warranty :
1 year
Material :
Steel
OEM :
Customized Drilling Rig
Color :
Yellow ,Red,blue
After sale service :
Video Support
Customize :
Acceptable
Description

St 300 Water Well Drilling Equipment ,Farm Watering Crawler Mounted Drill Rig

ST 300 Crawler Mounted Drill Rig Descrption:

ST 300 drilling rig is efficient and multifunctional drilling equipment ,has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.

ST 300 Crawler Mounted Drill Rig Main Parameter:

Drilling capability

 Drilling depth m 300(φ89)
Max. diameter of working floor mm φ330
Feeding system Max. liting capacity kN 160
Max. feeding capacity kN 80
Max. lifting speed m/min 32(25)
Max. feeding speed m/min 60(48)
Stroke mm 3800(7000)
Top drive Max. torque N.m 6600/3300
Max. speed r/min 95/190
I.D mm φ45
Deck engine Type YC4A125-T30
Rated power kW 92
Tool winch Hoisting capacity kN 15
Breakout device Max. breakout torque N.m 18000
Mud pipe I.D mm φ55
Max. pressure MPa 8
Chassis Highest speed km/h 2.4
Max. climbing gradient % 39
Max. ground clearance of crawler mm 1000
Max. inner distance between front support legs mm 2600
Max. iner dstance between back support legs mm 2700
Working dimension mm 3980*3130*6500
(3980*3130*8100)
Transportation dimension mm
4450(3980)*1800*2400
(6050(3980)*1800*2400)
Weight t 8.7(9.7)


ST 300 Crawler Mounted Drill Rig Advantages:

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work. The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

ST 300 Crawler Mounted Drill Rig Applications:

It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially for water intake projects in mountainous areas and rock strata. The efficiency is more than ten times higher than the traditional rotary drilling rig, and the economic benefits created for users are very considerable. In particular, it solves the construction problems of rotary drilling rig for hard rock layer, gravel and pebble layer, and can work under various geological structures.
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming DrillingSt 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming DrillingSt 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
St 300 Water Well Crawler Mounted Drill Rig Equipment For Farming DrillingSt 300 Water Well Crawler Mounted Drill Rig Equipment For Farming Drilling
