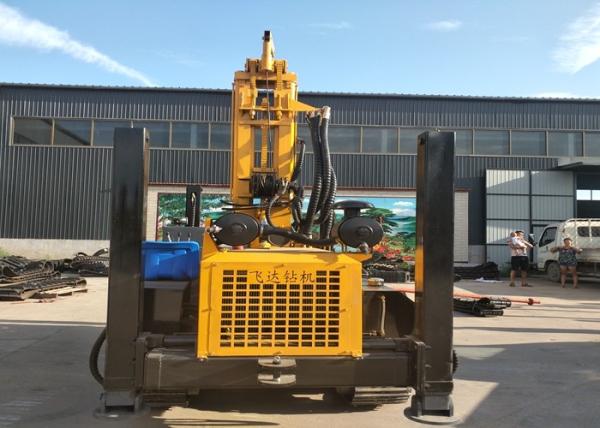

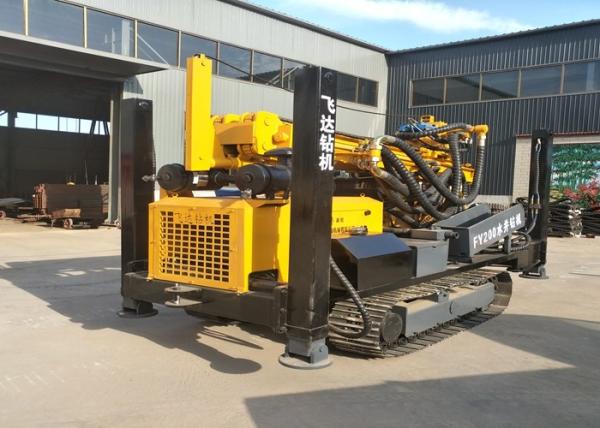

ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling
ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling
ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling
ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling
Specifications
Brand Name :
Shitan
Model Number :
ST200
Place of Origin :
Hebei China
Payment Terms :
L/C, T/T
Delivery Time :
15-20 working days
Packaging Details :
Standard export package wooden cases
Type :
Rotary Drilling Rig
After-sales service provided :
Engineers available to service machinery overseas
Usage :
Water Well
Power type :
Diesel,Electric
Condition :
New
Certification :
ISO
Product name :
Water Well Drilling Rig
Application :
water well drilling rig mobile drilling rig
Color :
Yellow
Description

ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling

Features:
1) Rang of rotation speed is wide and reasonable
2) The lowest speed is 49r/min,so the torque is over than 10KN.M,it’s easy to remove the drillnig accessories and deal with the accident
3)The cluth adopts hydraulic operation
4)The transmission case adopts automobile gearbox with high quality
5)The transfer case adopts synchroniser structure.
6)With good stability,guarantee machining precision.

Drilling rig parameters

ST-200 Type
Drill Swivel Head

Drilling depth

 Max.200m

Spindle speed

(4-speed)

115 230 505 1010r/m

Hole diameter

 Max.300m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 20KN Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 16.2KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1730*860*1360mm

Deep Hole Water Well Drill Rig Use

For geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

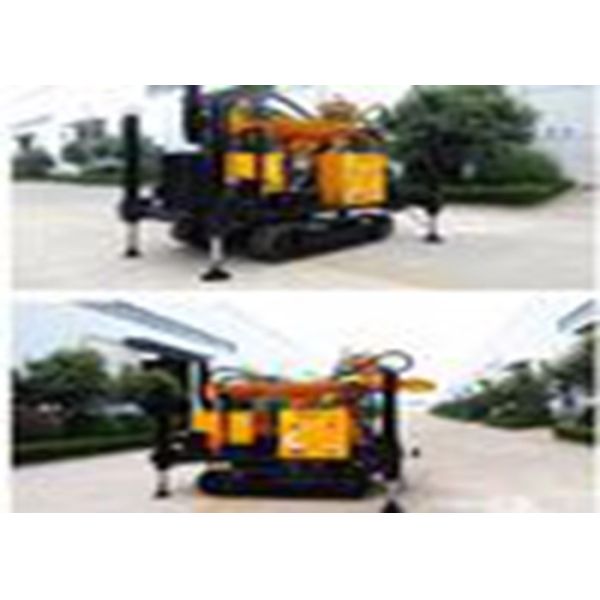

ST-200 Deep Hole Water Well Drill Rig For Water Well Drilling
