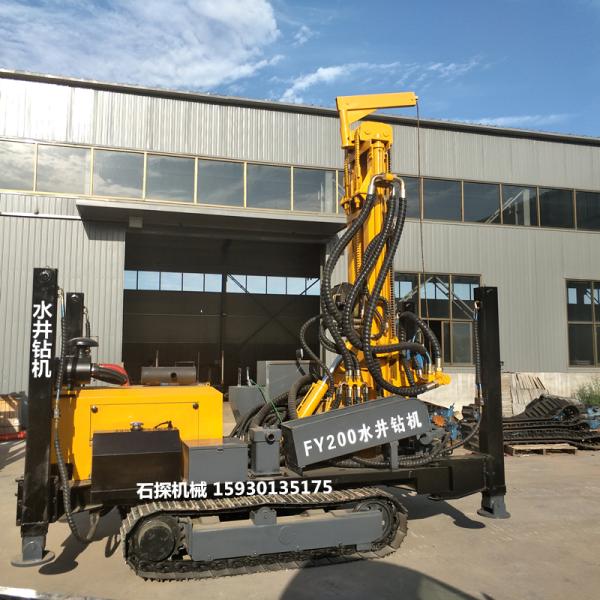

Fy200m Pneumatic Diesel Water Well Drill Rig
Fy200m Pneumatic Diesel Water Well Drill Rig
Specifications
Brand Name :
Shitan
Model Number :
STFY200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
20 days
Weight :
5.8t
Drilling Way :
Compound
Equipped Capacity :
65-70kw
Air Consumption :
17-30m3/Min
Production Capacity :
200 Set/Month
Condition :
New
Description

Fy200m Pneumatic Diesel Water Well Drill Rig

Basic Info.



1.FY200 water well drilling rig Feature

A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
FY200 is equipped with national patent technology---taper clutch,with charactristics of strong transmission troque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.


2.FY200 Water Well Drilling Rig Applications


FY200 drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drillling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.

Fy200m Pneumatic Diesel Water Well Drill Rig

Basic Info.

Fy200m Pneumatic Diesel Water Well Drill Rig

Model NO.
FY200
Drilling Way
Compound
Type
Crawler
Weight
5.8t
One Time Advance Length
3.4m
Walking Speed
2.5km/H
Climbing Angles
30max
Equipped Capacity
65-70kw
Air Compressor
1.7-3.0 MPa
Air Consumption
17-30m3/Min
Drill Pipe Diameter
Dia76 Dia89 Dia102
Drill Pipe Length
1.5 2.0 3.0 M
Rig Lifting Force
12t
Swing Speed
45-70rpm
Swing Torque
3500-4800n.M
Dimension
4000*1750*2450mm
Once Promotion Distance
6600mm
Color
According to Your Request
Trademark
FEIDA
Transport Package
Suitable for The Sea Transportation
Specification
Crawler
Origin
Shandong
HS Code
8430699000
