Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250
Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250
Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250
Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250
Specifications
Brand Name :
ATO
Certification :
API
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
To be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
100 Piece/Pieces per Day
Delivery Time :
To be negotiated
Packaging Details :
wooden box
Pressure :
High Pressure
Fuel :
Diesel
Color :
Red And So On
Material :
Cast Iron/stainless Steel Mud Suction Pump
Power :
Electric,Hydraulic
Application :
Mining,oil,Chemical
Description

Halliburton HT400 plunger pump seals, SPM TWS600 plunger pump, TWS2250 Plunger pump, Gardner Denver 2250 plunger pump

Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250

Push Rod Subassembly
L-2 Spacer
Loc Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM 4 316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 70.33739.
Seal, Push Rod, L-Spacer, HT-400TM 8 316.10014.
Discharge Valve Subassembly
Plunger Size
Loc 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover, HT-400TM 1 316.2102. 316.2202. 316.2202. 316.2502. 316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM 2 316.2107. 316.23091. 316.23091. 316.24044 316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 316.21052. 316.22052. 316.22052. 316.25052 316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 316.21051. 316.22051. 316.22051. 316.25051. 316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 316.22004. 316.22004. 316.22004. 316.22006 316.22006
Spring, Valve, HT-400TM, 36lb/in 7 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 316.21096 316.21096 316.23953 316.24043 316.24043
Suction Valve Subassembly
Plunger Size
Loc 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 316.22977. 316.22977. 316.23034 316.25840. 316.25840.
Boot, Suction and Stop, HT-400TM 2 316.25233. 316.25233. 316.25233 316.25233. 316.25233.
Spring, Lock, HT-400 3 316.2125. 316.2125. 316.22252. 316.22253. 316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 316.22004. 316.22004. 316.22004. 316.22006. 316.22006.
Spring, Valve, HT-400TM, 36lb/in 7 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 316.21096 316.21096 316.23953 316.24043 316.24043
Plunger/cylender Head Cover Subassembly
Plunger Size
Loc 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 316.2102. 316.2102. 316.2202. 316.2502. 316.2506.
Cover, Cylinder Head, HT-400TM 2 316.2107. 316.2107. 316.2207. 316.2407. 316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 316.21052. 316.21052. 316.22052. 316.25052. 316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 316.21051. 316.21051. 316.22051. 316.25051. 316.25073.
Nose, Plunger, HT-400TM 5 316.2131. 316.2231. 316.2331. 316.2331. 316.2331.
Seal, Plunger Nose Assembly, HT-400TM 6 316.2130. 316.2230. 316.2330. 316.2330. 316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM 7 316.21026. 316.22294. 316.23085. 316.24296. 316.25162.
Tie Rod, Plunger, HT-400TM 8 316.21028. 316.21028. 316.21028. 316.25165. 316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 316.21059. 316.22302. 316.23089. 316.24336. 316.25172.
Fluid-end/flange discharge section subassembly
Plunger Size
Loc 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 316.22980. 316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 316.21676. 316.23019. 316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 316.21677. 316.23017. 316.23017.
Seal, Discharge passage,HT-400TM 2 315.27117. 316.2547. 316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 316.11621. 316.11621. 316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 316.23013. 316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 316.27488. 316.27488. 316.27488.
Nut, Top Tie Bolt, HT-400TM, TC 6 316.25501. 316.25501. 316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 316.22493. 316.22493. 316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 316.2145. 316.2545. 316.2545.

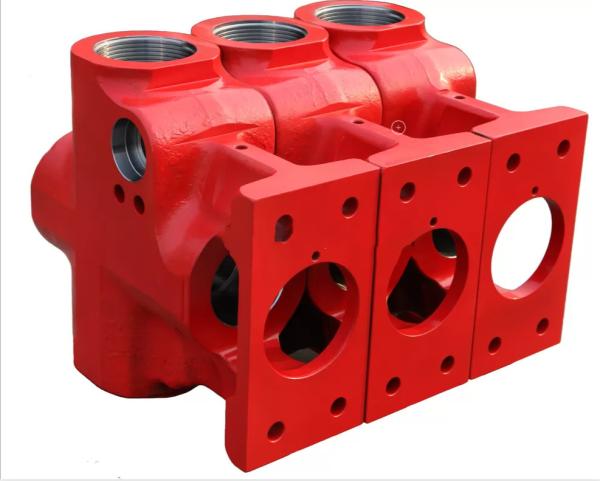

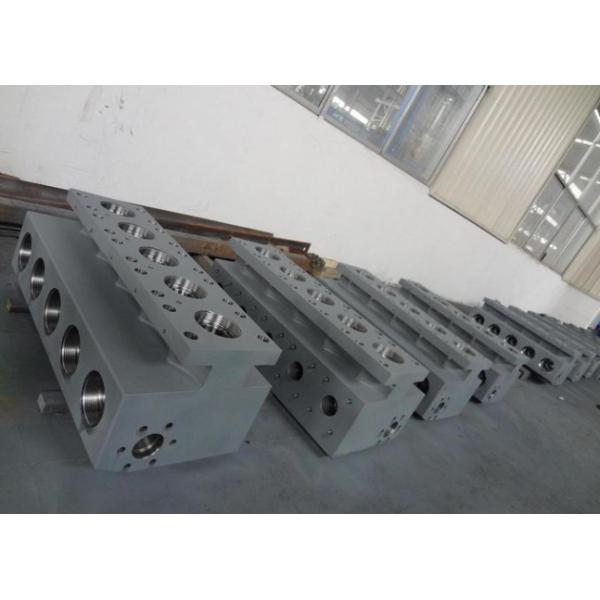

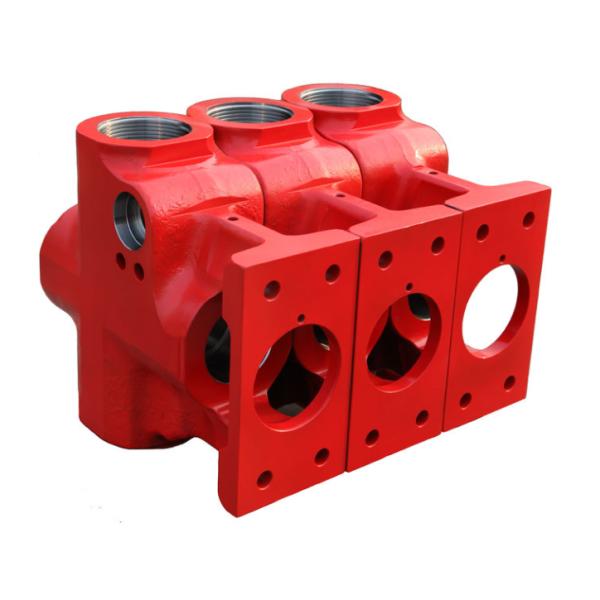

Fluid End Section, HT-400TM PUMP,Not Sleeved 9 316.21951. 316.22982. 316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF 10 70.32760. 70.32760.
Packing Subassembly
Plunger Size
Loc 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Adapter, Header 1 316.21503 316.22503 316.23503 316.24503 316.27503
Ring Header 2 316.21501 316.22501 316.23501 316.24501 316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service 3 316.21525 316.22525 316.23525 316.24525 316.27525
Ring, Backup, Packing, 4-in x 5-in. 4 316.21393 316.22393 316.23393 316.24393 316.27393
Carrier, Seal and Packing, 4-in 5 316.21396 316.22396 316.23396 316.24396 316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in 6 316.21395 316.22395 316.23395 316.24395 316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in 7 8.34040 8.34045 8.34049 8.34053 8.3405

Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250

Push Rod Subassembly
L-2 Spacer
Loc Qty Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 3 316.21066.PREM
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 3 8.34020.PREM
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 3 316.25166.PREM
Push Rod, Two Piece, L-Spacer, HT-400TM 4 3 316.21065.PREM
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 3 316.10012.PREM
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 3 316.10013.PREM
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 3 70.33739.PREM
Seal, Push Rod, L-Spacer, HT-400TM 8 6 316.10014.PREM
Discharge Valve Subassembly
Plunger Size
Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Retainer, Cover, HT-400TM 1 3 316.2102.PREM 316.2202.PREM 316.2202.PREM
Cover, Discharge, Double Guided Valve, HT-400TM 2 3 316.2107.PREM 316.23091.PREM 316.23091.PREM
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 3 316.21052.PREM 316.22052.PREM 316.22052.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 3 316.21051.PREM 316.22051.PREM 316.22051.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 6 316.22005.PREM 316.22005.PREM 316.22005.PREM
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 6 316.22004.PREM 316.22004.PREM 316.22004.PREM
Spring, Valve, HT-400TM, 36lb/in 7 3 316.2108.PREM 316.2108.PREM 316.2308.PREM
Valve, HT-400, Frac 8 3 316.21007.PREM 316.21007.PREM 316.22048.PREM
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 3 316.21048.PREM 316.21048.PREM 316.22046.PREM
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 3 316.21006.PREM 316.21006.PREM 316.22049.PREM
Seat Valve, HT-400TM, Tapered 10 3 316.21008.PREM 316.21008.PREM 316.210047.PREM
O-ring, 90 Duro 11 3 8.34037.PREM 8.34037.PREM 8.34041.PREM
Suction Valve Subassembly
Plunger Size
Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 3 316.22977.PREM 316.22977.PREM 316.22242.PREM 316.25840.PREM 316.25840.PREM
Boot, Suction and Stop, HT-400TM 2 6 316.25233.PREM 316.25233.PREM 316.25233.PREM 316.25233.PREM 316.25233.PREM
Spring, Lock, HT-400 3 3 316.2125.PREM 316.2125.PREM 316.22252.PREM 316.22253.PREM 316.22253.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 6 316.22005.PREM 316.22005.PREM 316.22005.PREM 316.22007.PREM 316.22007.PREM
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 6 316.22004.PREM 316.22004.PREM 316.22004.PREM 316.22006.PREM 316.22006.PREM
Retainer Guide Bushing, HT-400, Tapered Seat Bore 11 3 316.21096.PREM 316.21096.PREM 316.23953.PREM 316.24043.PREM 316.24043.PREM
Plunger/cylender Head Cover Subassembly
Plunger Size
Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 6 316.2102.PREM 316.2102.PREM 316.2202.PREM 316.2502.PREM 316.2506.PREM
Cover, Cylinder Head, HT-400TM 2 3 316.2107.PREM 316.2107.PREM 316.2207.PREM 316.2407.PREM 316.2507.PREM
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 6 316.21052.PREM 316.21052.PREM 316.22052.PREM 316.25052.PREM 316.25074.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 6 316.21051.PREM 316.21051.PREM 316.22051.PREM 316.25051.PREM 316.25073.PREM
Nose, Plunger, HT-400TM 5 3 316.2131.PREM 316.2231.PREM 316.2331.PREM 316.2331.PREM 316.2331.PREM
Seal, Plunger Nose Assembly, HT-400TM 6 3 316.2130.PREM 316.2230.PREM 316.2330.PREM 316.2330.PREM 316.2330.PREM
Plunger, Hard Surface, L-Spacer, HT-400TM 7 3 316.21026.PREM 316.22294.PREM 316.23085.PREM 316.24296.PREM 316.25162.PREM
Tie Rod, Plunger, HT-400TM 8 3 316.21028.PREM 316.21028.PREM 316.21028.PREM 316.25165.PREM 316.25165.PREM
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 3 316.21059.PREM 316.22302.PREM 316.23089.PREM 316.24336.PREM 316.25172.PREM
Fluid-end/flange discharge section subassembly
Plunger Size
Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 1 316.22980.PREM 316.22980.PREM
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 1 316.21676.PREM 316.23019.PREM 316.23019.PREM
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 1 316.21677.PREM 316.23017.PREM 316.23017.PREM
Seal, Discharge passage,HT-400TM 2 6 315.27117.PREM 316.2547.PREM 316.2547.PREM
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 4 316.11621.PREM 316.11621.PREM 316.11621.PREM
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 4 316.23013.PREM 316.23013.PREM
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 1 316.27488.PREM 316.27488.PREM 316.27488.PREM
Nut, Top Tie Bolt, HT-400TM, TC 6 2 316.25501.PREM 316.25501.PREM 316.25501.PREM
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 2 316.22493.PREM 316.22493.PREM 316.22493.PREM
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 2 316.2145.PREM 316.2545.PREM 316.2545.PREM
Fluid End Section, HT-400TM PUMP,Not Sleeved 9 3 316.21951.PREM 316.22982.PREM 316.23951.PREM
Nut, Elastic, Stop,3/4-in.,16 NF 10 2 70.32760.PREM 70.32760.PREM
