TS Pneumatic Spider
Description:

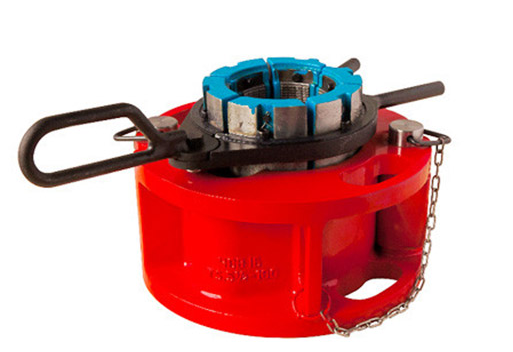

Pneumatic spider is a kind of special tool used for clamping oil pipe in petroleum gas drilling and production, which is composed of two chucks and multi-page clips, certain amount of inserts, movable pins and bolts, it features flexible operation and easy application which is designed and manufactured according to requirements of API Spec 7K.
Specification:
1.Model: Type TS-100 tubing manual spider
2.Tubulars OD: 1.05~5 3/4 inch
3.Rated Capacity: 100 Tons
4.Standard : API Spec 7K

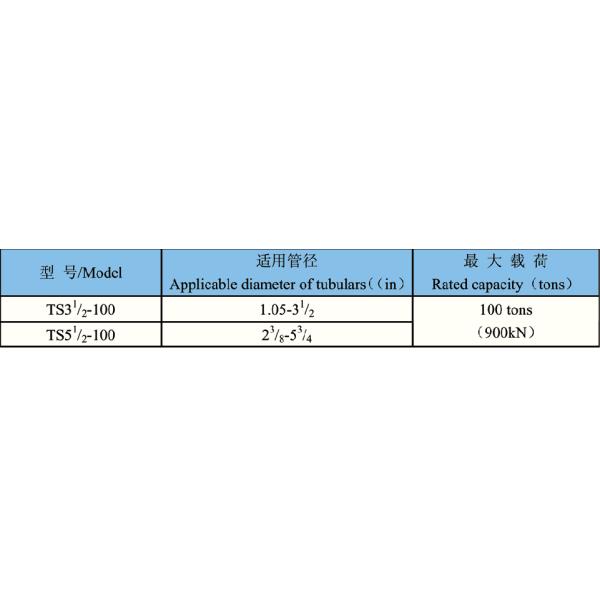

Technical Specification:
|
Model |
Applicable pipe diameter |
Quantity of insert |
Rated load | |
| tons | kN | |||
| 31/2TS-100 |
33/8 31/2 31/8 27/8
23/8 21/16 2 1.9
1.66 1.315 1.05
| 9 | 100 | 900 |
| 41/2TS-100 |
43/8 41/2 41/4 41/8
4 33/4 31/2 33/8
31/4 31/8 3 27/8
23/8 21/16 1.9 1.66
| 12 | ||
| 51/2TS-100 |
53/4 51/2 5 43/8
4 1/2 41/4 41/8 4
33/4 31/2 33/8 31/4
31/4 3 27/8 23/8
| 12 | ||
