Specifications
Brand Name :
ATO
Certification :
API
Place of Origin :
CHINA
Payment Terms :
L/C, T/T
Packaging Details :
pallet
Color :
as Requested
Height :
550
Weight :
15
Transport Package :
Polywood case and pallet
Specification :
API-10D
Description

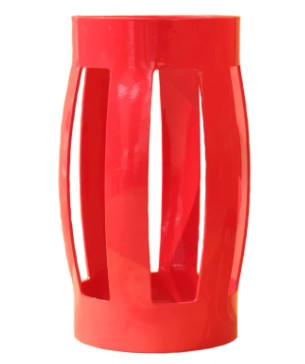

API Standard Non-Welded Spring Bow Integral Centralizer

Basic Info.

Model NO.
5 1/2"
Color
as Requested
Type1
Slip on
Height
550
Weight
15
Bow Number
6
Type2
Integral Centralizer
Material1
65mn
Transport Package
Polywood case and pallet
Specification
API-10D
Origin
China

Product Description

Product name: Casing centralizer

Product classification: Bow-spring centralizer, Rigid roller centralizer, Cast aluminum centralizer

Product overview:
Casing centralizer is one of the necessary conventional casing accessories, upon well operationscompletion, the rational use of casing centralizer can play the role of:
Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;
Making casing centralizer centered within the well|;
Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;
Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.

The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.

Bow-spring centralizer
1. These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well
2. Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over

3. Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Rigid roller centralizer
Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid roller centralizerthat can keep casing from contacting the wellbore wall

Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so the Roller rigid centralizer greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly
Cast aluminum centralizer:
The smooth spiral 360 overlap solid vane design of centralizers provide max wall contact will not damage wellhead equipment, has high impact and shock resistance comand fluid swirl. The 30slope from the body to the height of the vane will eliminate scraping, or digging into the formation.

The solid cast aluminum centralizers bine with high tensile and yield strengths
No. Specification Bow Type ID(mm) Length
(mm)
Max. O.D
(mm)
Bow Spring
1 5-1/2"*8-1/2" I,II 142-148 650±50 225±5 5
2 7"*8-1/2" I,II 181-186 650±50 235±5 6
3 9-5/8"*12-1/4" I,II 250-255 650±50 330±5 8
4 10-3/4"*12-1/4" I,II 274-276 650±50 330±5 9
5 13-3/8"*17-1/2" I,II 342-347 650±50 450±5 11
6 20"*26" I,II 510±1 600±50 660±5 12
Specification In-Dia Height Total height Largest Dia
5"*12-1/4" 128-131 105 690 330
5"*20" 128-131 105 720 535
5-1/2"*7" 142-148 55 650 215
5-1/2"*8-1/2" 142-148 55 650 225
6"*8-1/2" 156-158 55 650 235
7"*8-1/2" 181-186 55 650 235
7"*9-5/8" 181-186 55 650 255
7-5/8"*9-5/8" 197-201 55 650 275
9-5/8"*12-1/4" 250-255 55 650 330
13-3/8"*17-1/2" 342-347 55 650 450
5-1/2"*8-1/2" 142-148 110 650 225
7"*9-5/8" 181-186 110 650 255
7"*8-1/2" 181-186 110 650 235
5"*6-1/2" 128-131 110 650 175
7-5/8"*9-1/2" 196-200 110 650 250
10-3/4"*12-1/4" 274-276 110 650 330
5"*6-1/4" 130-132 110 650 170
9-5/8"*12-1/4" 250-255 110 650 330
13-3/8"*17-1/2" 342-347 110 650 450
5-1/2"*8-1/2" 142-148 55 650 225
