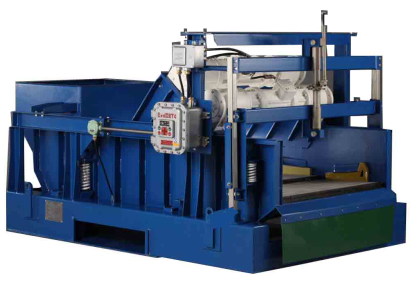

Vibration 7.2g 2.8m2 Solid Control Equipment Drilling Shale Shaker
Vibration 7.2g 2.8m2 Solid Control Equipment Drilling Shale Shaker
Specifications
Brand Name :
ATO
Model Number :
ZS280-3P
Certification :
API
Place of Origin :
China
MOQ :
1sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1sets/month
Delivery Time :
45 work days
Packaging Details :
Skid
Model :
ZS280-3P
Vibration Motor Power :
2.2*2KW
Shake Frequency :
24.3Hz
Explosion Proof Grade :
dIIBT
Screen Total Area :
2.8㎡
Amplitude(Double) :
5.8mm
Vibration Intensity :
7.2g
Screen Box Inclination Adjustment Range :
-2° to +6°
Weight :
2160kg
Outline Size（L×W×H）） :
3275*1750*1600mm
Description

Solid Control System Drilling Shale Shaker Model ZS280-3P API Standard

Product Description

Shale shaker is primary solid control equipment in the drilling fluid purification system. Which is used to separate the large particle suttings contained in the drilling fluid, and the treated smaller particle drilling fluid can be passed to the next stage of solid control equipment for further processing. Shale shaker is the prerequisite for ensuring the normal operation of the latter stages of solid control equipment. If the shale shaker can not work normally, the latter stages of solid control equipment will be overloaded with work, seriously affact the work effect, caused the performance of the drilling fluid to deteriorate, aggravate the wear of drilling pump cylinder liners, pistons, drill bits, noggle, etc and thereby increasing the pump repair time, it is easy to cause complicated underground conditions. Therefore, shale shaker are important for improving drilling fluid performance and reducing drilling costs.

Type Linear Shale Shaker Balanced Elliptical Shale Shaker
Model ZS280-3P ZS240-3P ZS220-3P ZS180-3P ZS280-3P-PT ZS240-3P-PT
Vibraiton Motor Power(kW) 2.2*2
Shake Frequency(Hz) 24.3
Explosion Proof Grade dIIBT
Screen Total Area(m2) 2.8 2.4 2.2 1.8 2.8 2.4
Amplitude(Double)(mm) 5.8
Vibraiton Internsity (g) 7.2
Screen Box Inclination
Adjustment Range		 -2°~+6°
Weight(kg) 2160 2000 1980 1890 2160 2100
Outline Size (LxWxH)
(mm)		 3275*1750*1600 2750*1750*1600 2750*1650*1600 2280*1680*1480 3275*1750*1769 2750*1750*1600

Vibration 7.2g 2.8m2 Solid Control Equipment Drilling Shale Shaker
