FH35-35 Taper Type HNBR Material 9 Drilling BOP
FH35-35 Taper Type HNBR Material 9 Drilling BOP
FH35-35 Taper Type HNBR Material 9 Drilling BOP
FH35-35 Taper Type HNBR Material 9 Drilling BOP
FH35-35 Taper Type HNBR Material 9 Drilling BOP
FH35-35 Taper Type HNBR Material 9 Drilling BOP
Specifications
Brand Name :
Cameron
Model Number :
FH35-35
Certification :
API
Place of Origin :
China
MOQ :
1sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4sets/month
Delivery Time :
30days
Packaging Details :
Wooden
toughness A :
75±5
300% tensile toughness Mpa :
≥10
tensile toughness Mpa :
≥18
elongation rate % :
≥400
permanent distortion % :
≤30
aging rate120℃×24h :
≥0.6
brittleness temperature℃ :
≤-18
brittleness temperature KN/m :
≥40
brittleness temperature Mpa :
≥4
Description

Drilling BOP FH35-35 taper type series HNBR material with API Standard

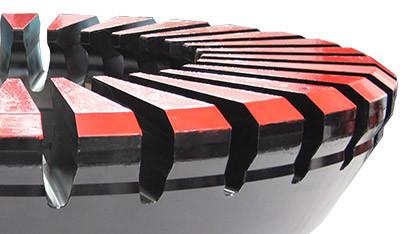

The packing element for Annular BOP FH35-35 is a special high performance product for preventing the blowout. The packing element is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the USA 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements. And the repair seal kits are equipped.

Taper type series packing element specification

working pressure MPa(psi)　 Bore mm(in)　
179(7 1/16”) 228(9”) 279(11”) 346(13 5/8”) 425(16 3/4”) 476(18 3/4”) 527(20 3/4”) 540(21 1/4”) 680(26 3/4”) 750(29 1/2”)
70(10000) √ 　 √ √ 　 　 　 　 　 　
35(5000) √ √ √ √ 　 　 　 √ 　 　
21(3000) 　 　 √ √ 　 　 √ 　 　 　
14(2000) 　 　 　 　 　 　 　 √ 　 　
3.5(500) 　 　 　 　 　 　 　 　 　 √

Physics performance of rubber

Iitem Inspection item Technical specification ≤35MPa Technical specification ≥70MPa
1 toughness A 75±5 85±5
2 300% tensile toughness Mpa ≥10 ≥10
3 tensile toughness Mpa ≥19.6 ≥19.6
4 elongation rate % ≥250 ≥200
5 permanent distortion % ≤25 ≤20
6 aging rate120℃×24h ≥0.6 ≥0.6
7 brittleness temperature℃ ≤-18 ≤-18
8 brittleness temperature KN/m ≥40 ≥40
9 brittleness temperature Mpa ≥4 ≥4

High performance rubber physics specification(HNBR material, Cameron refer to Cameron type material specification)

Iitem Inspection item Technical specification
1 toughness A 75±5
2 300% tensile toughness Mpa ≥10
3 tensile toughness Mpa ≥18
4 elongation rate % ≥400
5 permanent distortion % ≤30
6 aging rate120℃×24h ≥0.6
7 brittleness temperature℃ ≤-18
8 brittleness temperature KN/m ≥40
9 brittleness temperature Mpa ≥4
