Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Special Crane Chassis 400 Meter 6X4 water well drilling equipment
Specifications
Brand Name :
BZ
Model Number :
BZC400ZY
Certification :
ISO14001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
5 set / year
Delivery Time :
8 month
Packaging Details :
Device Prizing
Type :
Rotary Drilling Rig
Usage :
Water well
Condition :
New
Power type :
Chassis
Warranty :
12 Months
After-sales service provided :
1 year
Weight :
19340KG
Dimension(l*w*h) :
500 mm
Drilling depth :
400 m
The highest speed（Km/h） :
75
Description

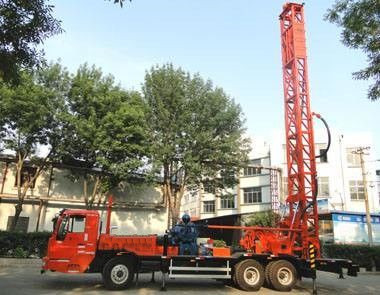

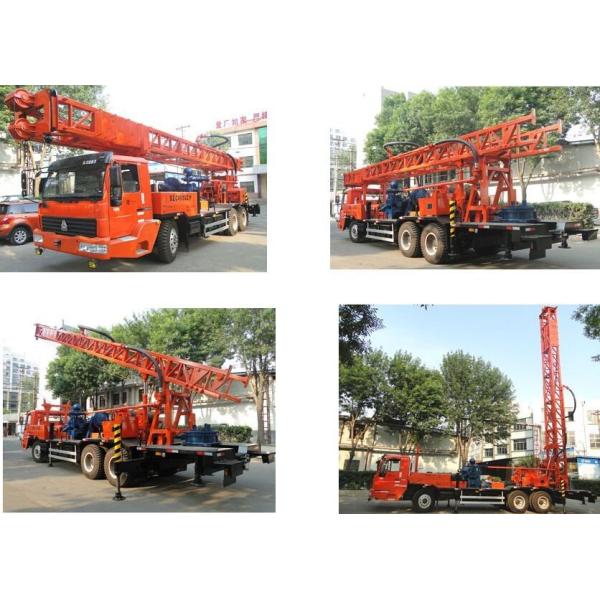

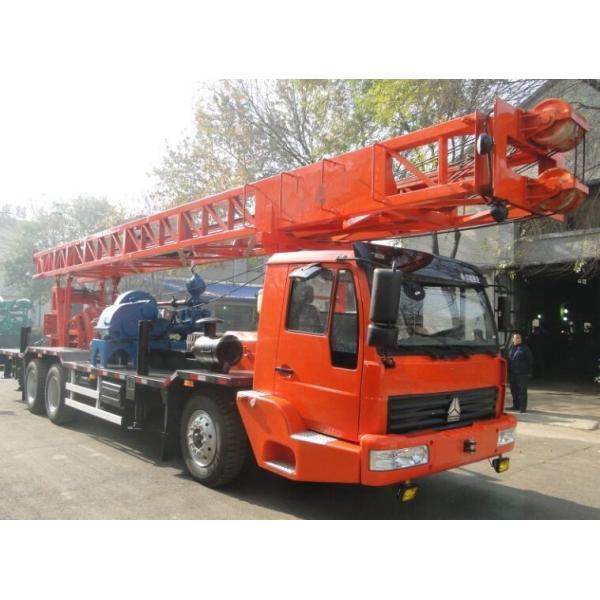

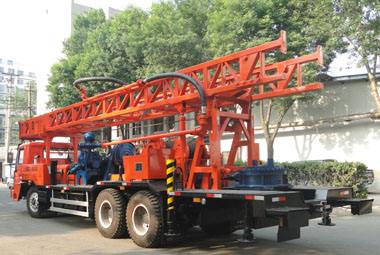

BZC400ZY truck mounted drilling rig

Description:BZC400ZY truck mounted drilling rig

Product description
Main features:

◎ BZC400ZY truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.

◎ The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.

◎ This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

◎ The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.

◎ We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

◎ We can set up a generator (15kw) , so that it is convenience to illuminate or work at night.

◎ The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

◎ The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

◎ The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

Special Crane Chassis 400 Meter 6X4 water well drilling equipment

Special Crane Chassis 400 Meter 6X4 water well drilling equipmentSpecial Crane Chassis 400 Meter 6X4 water well drilling equipmentSpecial Crane Chassis 400 Meter 6X4 water well drilling equipment

Technical parameter
Drilling depth(M)80400
Drilling diameter(mm)1500500
Speed of turntable(r/min)21.2；36；63.2；100.6；155；20.2(reverse)
Torque of turntable(KN.m)18；10.6；6；3.8；2.5；18.9(reverse)
Single rope lifting capacity of main windlass(KN)45
The capacity of main windlass(KN)270
Single rope lifting capacity of hydraulic windlass(KN)40
The capacity of hydraulic windlass(KN)160
The lifting capacity of hook(KN)270
Bearing capacity of mast (KN)270
The height of mast (mm)11500
Bearing capacity (t)30
PipeKelly (mm)108×108×7500
Assistant pipe (mm)Ф89×10×5500
Hydraulic pumpModelCB-HP80/40
Pump delivery (ml/r)80/40
Rated speed (r/min)2000
Rated pressure(MPa)20

BW850/2A

plunger pump

Diameter of cylinder (mm)150
Stroke of piston (mm)180
Theory of flow (L / min)600 850
Rated pressure (Mpa)3 2
Pounding times (min-1)58 82
Diameter of suction tube (mm)127
Diameter of drain pipe (mm)64
Input speed (r / min)470
Input power (kw)40
Overall dimensions (mm)2000*1030*1400
Weight (t)1.5
Truck chassisModelTAZ5183TZJ
Drive form6×4
EngineModelCA6DE3-20E3(Europe Ⅲemission standard)
Rated power(KW)147
Speed (r/min)2300
Size (L*W*H)(mm)11110×2490×2500
Electric generatorModelMF
Rated power (kw)15
Rated voltage(v)400
Rated current(A)27
Speed (r/min)1500
Frequency(Hz)50
Protection levelIP21
Insulation ClassH
The best working gear (or speed)5th gear(1000-1400r/min)
The highest speed(Km/h)75
Weight (kg)19340
Transport size(L*W*H)(mm)12160*2490*3440
Working size(L*W*H)(mm)11110*2490*13110

Selectable configuration:

CompressorBrandDisplacementPressureDiesel enginePower
American Sullar1070XH30.3 m3/min2.41MpaCaterpillar347Kw
Swedish Atlas XRVSI09628.3 m3/min2.0MpaCaterpillar328Kw
Japan PDSJI00S28.3 m3/min2.11MpaMitsubishi327Kw
Kaishan LGCY26/20K26 m3/min2.0MpaCummins298Kw
Hongwuhuan HG900/2025.5 m3/min2.0MpaCummins239Kw
DTHOriginModelDiameterLengthWeight
South KoreaTD50130-152mm781mm62Kg
TD80194-254mm1264mm180Kg
TD100251-305mm1575mm350Kg
TD112320-381mm1788mm618Kg
Drill bitDTHDiameter
TD50146mm
TD80216mm
219mm
250mm
Dust device
