SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing
SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing
Specifications
Model Number :
TPD/TPE 600
Certification :
API
Place of Origin :
China
Payment Terms :
T/T, L/C
Packaging Details :
Wooden box
Brand Name :
SERVA
Description

SERVA TPD/TPE 600 Triplex Plunger Pumps

SERVA TPD/TPE 600 Triplex Plunger Pumps are used for cementing and acidizing service. Their short length allows back-to-back placement of two pumps on the unit with less than 102'' total width. TPE600 pumps can be more effectivein preventing the leaking fluid from entering the power end.

Specifications
Maximum Input Horsepower 600 bhp
Maximum Rod Load 100,000 lbs
Stroke Length 6"
Gear Ratio 4.6:1
Plunger 2.75" to 4.5"
Approx. Length 50.25" (1,276 mm)
Approx. Width 52.93" (1,344 mm)
Approx. Height 23.88" (607 mm)
Weight Dry 4,600 lbs

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Major Features:

Wider heavy-duty main bearing

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Babbitt alloy crosshead coating

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Left or right gearbox mounting

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

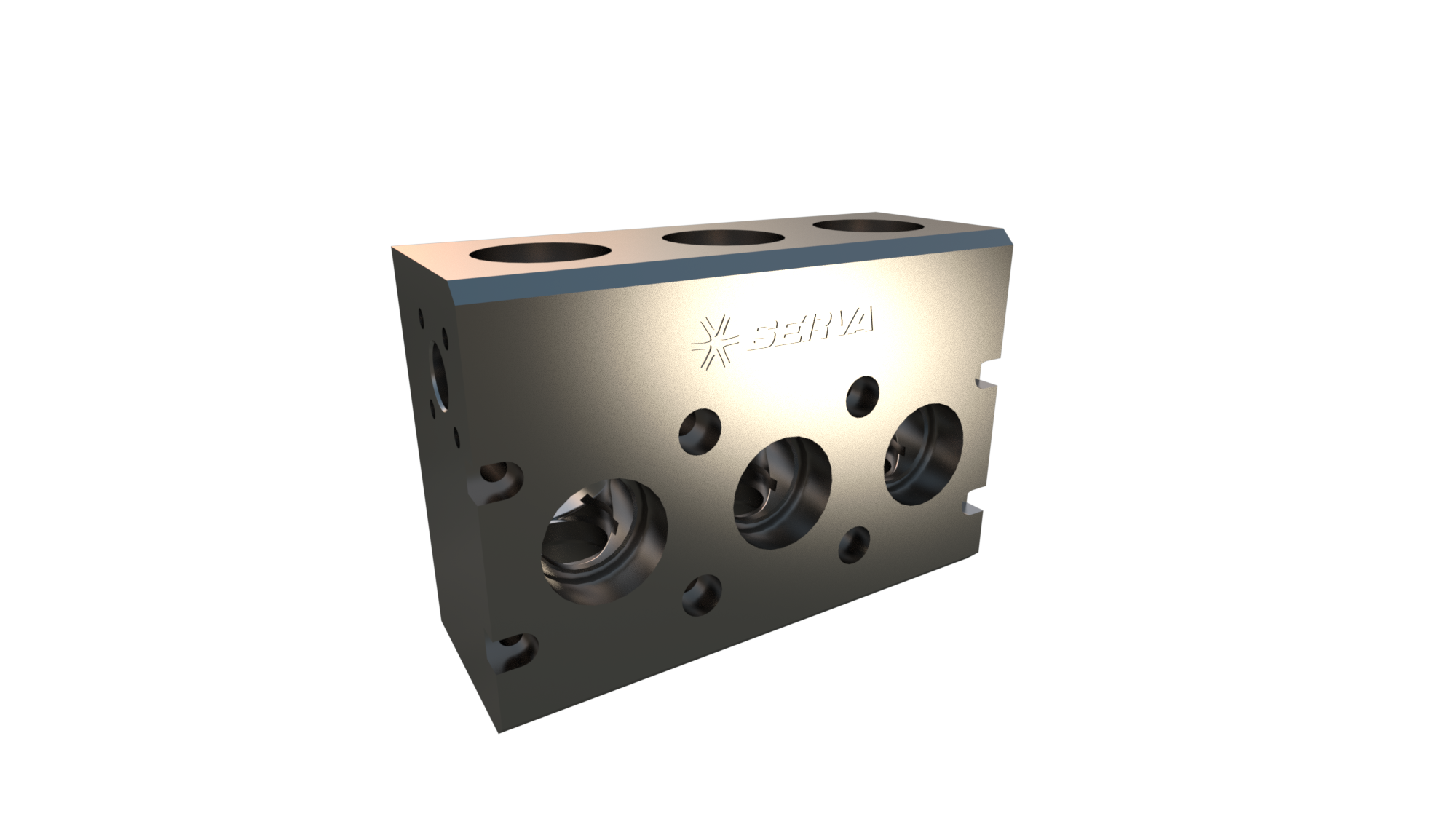

Forged alloy steel mono-block fluid end

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Left- or right-side suction and discharge connections

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

High-performance header-ring style packing

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Extended TPC 600 pump for option

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing
