PCT - 611A Single Pump Oilfield Cement Truck For Slurry Mix
PCT - 611A Single Pump Oilfield Cement Truck For Slurry Mix
Specifications
Brand Name :
SERVA
Model Number :
PCT-611A
Place of Origin :
China
Payment Terms :
T/T, L/C
Description

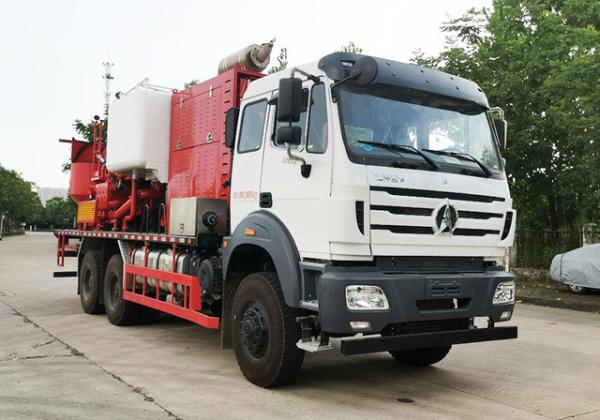

PCT-611A Single Pump Cementing Truck

This product is a truck-mounted mixing and pumping unit for cementing operation in onshore oilfields. It can accurately control and mix the cement slurry manually or automatically based on preset cement slurry density and slurry discharge rate.

Specifications:

Chassis North Benz, 6x6
Engine CAT C13 (475 hp@2,100 rpm)
Or CAT C15 (540 hp@2,100 rpm)
Transmission ALLISON 4700
Plunger Pump TPC600 (3", 3 1/2", 4", 4 1/2")
Water C-pump SERVA 4X3(1 Set)
REC. &boost C-pump SERVA 5X6(1 Set)
Displacement Tank 25 bbl(4 m³)
Mixing Tub 12 bbl(1.9 m³)
High-Energy Mixing System Auto ACM-IV.1
Max Discharge Pressure 103.5 MPa (15,000 psi)
Max Discharge Rate 2.1 m³/min
Weight 24,000 kg
Working Temperature Range -20℃~﹢50℃

Features:

  • The mixing power is partially supplied by chassis engine which increases the actual operation power of deck engine;
  • Optional external diesel-fired heater;
  • Lightweight design.
