RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
Specifications
Brand Name :
ATO
Certification :
API
MOQ :
1 sets
Input power rating (KW) :
410 (550HP)
Rated pump speed (RPM) :
145
Stroke Length (mm) :
177.8(7”)
Gear ratio :
4.625
Valve size (API) :
7#
Overall dimensions :
3205*2250*2000mm
Description

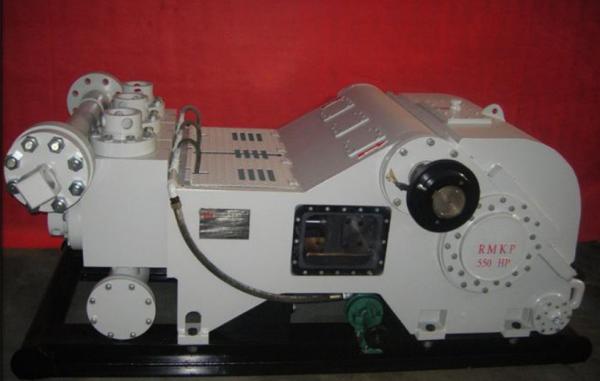

RMKP-550 Mud Pump

• RMKP-550 Pump Technical specifications

• Input power rating (KW) 410 (550HP)
• Rated pump speed (RPM) 145
• Stroke Length (mm) 177.8(7”)
• Gear ratio 4.625
• Rated speed of transmission shaft (RPM) 670
• Max. working pressure (Kg/sq.cm) 352 (5000PSI)
• Valve size (API) 7#
• Max. liner diameter (mm) 7.75”
• Max. displacement (GPM) 622
• Max. liner pressure (Kg/sq.cm) 96 (1364PSI)
• Diameter of suction pipe (mm) 203.2 (8”)
• Diameter of discharge pipe (mm) 100 (4”)
• Overall dimensions 3205*2250*2000mm
• Weight (lbs )(exclude five way joint and
pulsation damper) 8300kg 18300lbs
• Weight (with skid) 10800kg

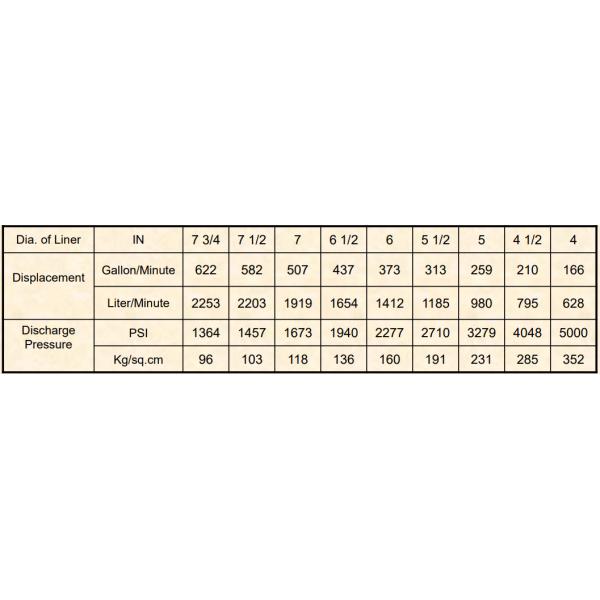

RMKP-550 Pump Performance Data
RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed

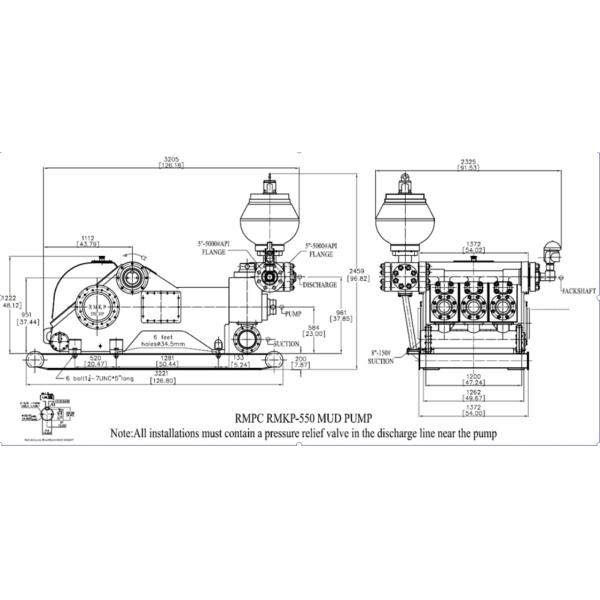

The Over Installation Dimensions Drawing For RMKP-550

RMKP-550 Mud Pumps For Drilling Rigs 145RPM Rated pump speed
