140mm Spring Travel 500 KN Max. Load Hook For Heavy-Duty Applications
140mm Spring Travel 500 KN Max. Load Hook For Heavy-Duty Applications
Specifications
Brand Name :
ATO
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Max. Load KN :
500
Spring travel mm :
140
Description

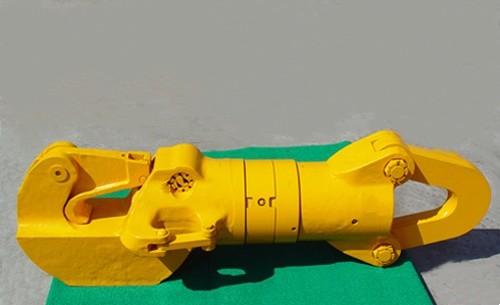

Hook Max. Load 500 KN Opening size of master hook 130 mm

Descriptions of Hook Max. Load 500 KN Opening size of master hook 130 mm:

Series hooks conform to API Spec 8A, and are granted the right to use API monogram.
Conform to industry standard SY/T5527.
Special structure in main body with good buffer function.
The master hook is equipped with double safety device.
The main parts of hooks are made of high-strength alloy steel, and passed non-destructive test.

Specifications :

Model DG50 DG100 DG225 DG315 DG450
Max. Load KN 500 1000 2250 3150 4500
Spring travel mm 140 140 180 200 200
Opening size of master hook, mm 130 140 190 220 220
Overall dimensions (L×W×H) mm 1660×522×500 1900×765×700 2548×780×750 2960×890×835 2960×890×880
Weight Kg 419 1310 2175 3430 3520
