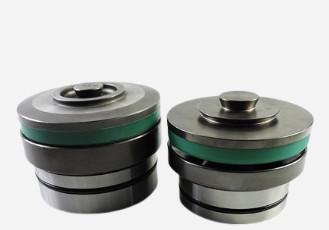

Premium Alloy Steel Fracturing Pump Valve Seat Pressure Level 140Mpa 210Mpa
Premium Alloy Steel Fracturing Pump Valve Seat Pressure Level 140Mpa 210Mpa
Specifications
Brand Name :
ATO
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Product Specification :
3 in, 3.5 in, 4 in, 4.5 in, 5 in.
Pressure Level :
210 Mpa
Temperature Rating :
300°F(149°C)
Surface Hardness :
HRC 59-HRC61
Description

Fracturing Pump Valve Seat Pressure Level 140Mpa, 210Mpa Material Premium Alloy Steel

Technical Parameters:

1. Product Specifications: 3 in, 3.5 in, 4 in, 4.5 in, 5 in.
2. Pressure Level: 140Mpa, 210Mpa.
3. Material: Premium Alloy Steel.
4. Temperature Rating: 300°F(149°C).
5. Valve body with full integrated forged technology and precision machining to get exact dimensional tolerance control.
6. Heats treat carburizing with a deep wear case(1.4~1.6mm).
7. Surface Hardness HRC 59-HRC61, much increased resistance to abrasion and extrusion.
8. Urethane is poured directly around machined serrations to anchor the insert to the valve.
9. 100% processing inspection.
10. Completely interchangeable with SPM 2250,2500&2800 frac pump and similiar structure manufactured by Jereh, Honghua, SANY and SJS.
