DTH Hammers
Product Description
Our hammer and bits are made of high quality alloy steel with advanced heat treatment to assure the good drilling performance and long service life. They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
DTH hammers types we supply:
A.High pressure series
B.Medium pressure series
C. Low pressure series
D. High efficiency high pressure series
E.Reverse circulation series
Item | GL345A | GL355K | GL360K | GL380K |
Drilling Dia. (ф/mm) | 105-130 | 140-152 | 165-219 | 203-350 |
Hammer Length(mm) | 1034 | 1098 | 1372 | 1504 |
Outside Dia.(ф/mm) | 98 | 124 | 152 | 180 |
Weight(kg) | 39 | 70 | 92 | 230 |
Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 |
Air Consumption (M3/Min.) | 3.5-15 | 4.5-18 | 9-26 | 9.6-24.8 |
Torque(N.M) | 335 | 800 | 1150 | 1870 |
Impact Frequency (Times/Min.) | ≥800 | 840-1500 | 950-1650 | 1100-1550 |
Connection 1 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 4 1-2 |
Connection 2 | Ф64-8 | Ф84-8 | Ф99.5-8 | ф128-10 |

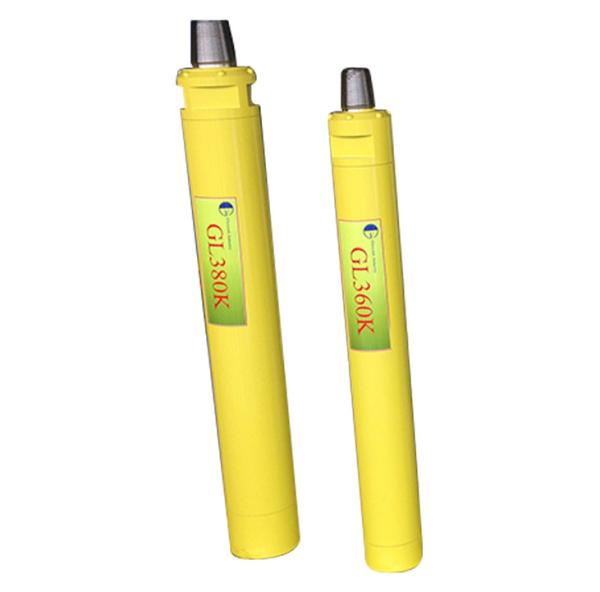

Product Picture
Packing & Delivery of DTH hammers
Packing: Plywood Box
Delivery: Normally 3-5days after your down payment; about 20 days after your down payment if we don't have stock.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd.,
is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days, and within 20days if we don't have enough stock.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
