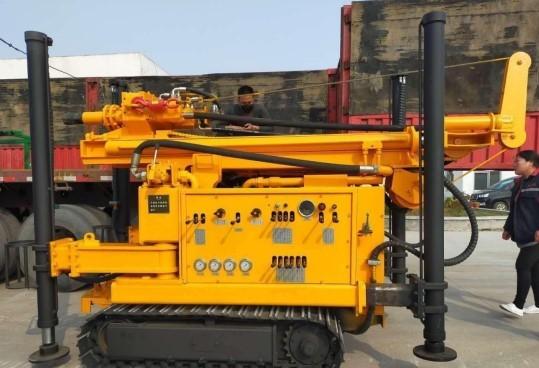

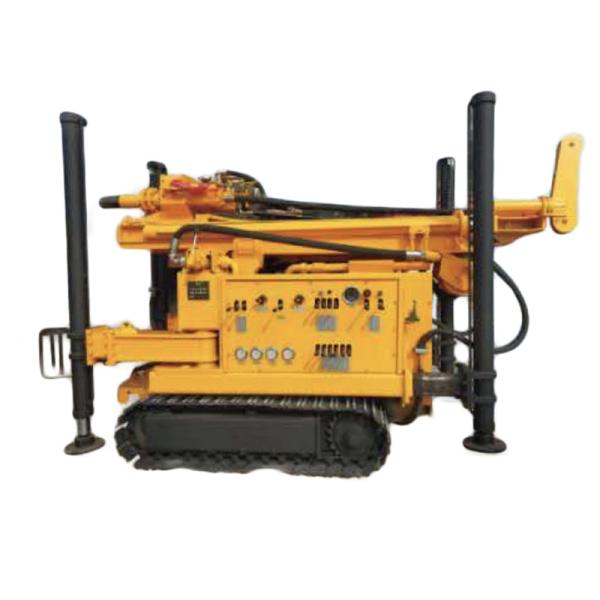

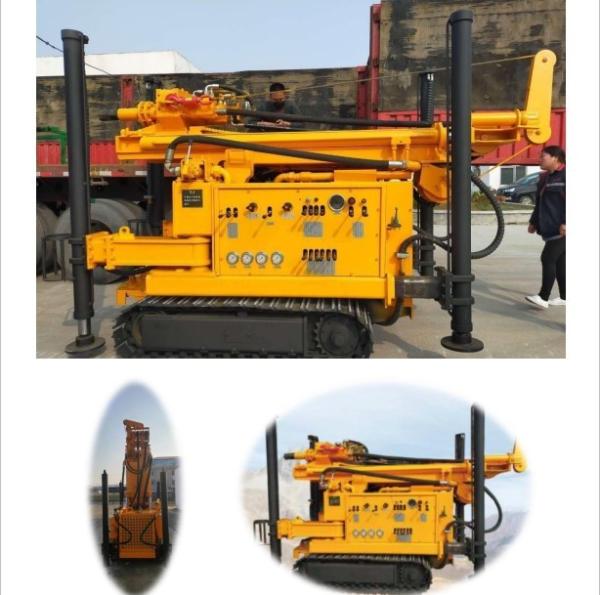

90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type
Specifications
Brand Name :
Glorytek
Model Number :
GL300B
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :
40sets/month
Delivery Time :
20 days
Packaging Details :
Standard exporting packing
Name :
GL300B Fully Hydraulic Crawler Type Borehole Drill Rig Machines with High Efficiency
Keyword :
Fully Hydraulic Drill Rig Machines
Depth :
300m
Drilling diameter :
105-273mm
Air pressure :
1.2-3.5Mpa
Rod length :
3m
Drill rod dia. :
76-89-102mm
Lifting force :
18T
Weight of the rig :
5.5T
Dimension :
2400*1350*2000mm
Diesel engine :
90KW
Moving speed :
2.5Km/h
Description

GL300B Fully Hydraulic Crawler Type Borehole Drill Rig Machines with High Efficiency

Description:

GL300B Fully Hydraulic Crawler Type Borehole Drill Rig is multi-functional, with different configurations suitable for different geology. It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.
All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis. Welcome to contact us for more information.

Tehnical Parameter:

Main Parameter
Max. Drilling Depth
300m
Drilling Hole Dia.
105-273mm
Working Pressure
1.2-3.5Mpa
Air Consumption
16-55m3/min
Drill Pipe Length
3m
Drill Pipe Dia.
76-89-102mm
Main shaft pressure
5T
Lifting Force
18T
Total swing stroke
3.6m
Max.Rotation Torque
10000Nm
Max rotary speed
50/100r/min
Secondary winch lifting force
2T
Jacks stroke
1.4m
Moving speed
2.5Km/h
Uphill angle
21°
Weight of the rig
5.5T
Working dimensions
3.1*2.8*7.3m
Diesel engine
90KW
The oil pump
gear pump
Overall dimensions
2400*1350*2000mm
Working condition
Loose bed and bedrock
Drilling method
Top drive hydraulic rotating and feeding,
DTH percussion drilling or mud drilling
Suitable hammer
high pressure type 5",6" 8"

90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type

Company Profile

90KW Borehole Drill Rig Machines Fully Hydraulic Crawler Type

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

After-sale Warranty

Warranty of GL-300B Crawler Type Water Well Drilling Rig: (1)Within the period of the first year after delivery, the main parts of GL-300B Crawler Type Water Well Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue. (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account. (3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
