Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well
Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well
Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well
Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well
Specifications
Brand Name :
Glorytek
Model Number :
GL250
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :
50sets/month
Delivery Time :
20 days
Packaging Details :
Standard exporting packing
Name :
Hydraulic Rotary GL250 Crawler Portable 200m Depth Water Well Borehole Drilling Rig
Keyword :
200m Depth Water Well Borehole Drilling Rig
Depth :
250m
Hole Diameter :
200mm
power :
20kw
weight :
3500kg
Description

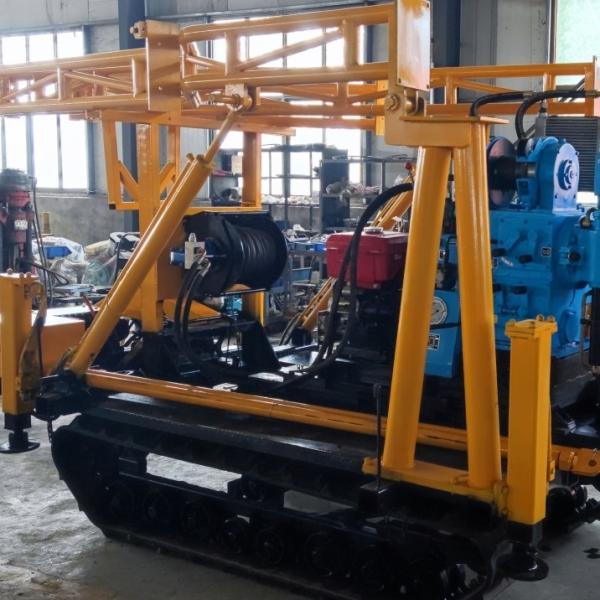

Hydraulic Rotary GL250 Crawler Portable 200m Depth Water Well Borehole Drilling Rig

Description:

GL250 drilling rig is mainly used in used for drilling and water exploration equipment in plains, mountainous areas and inconvenient areas

The drilling rig has a hydraulic automatic feeding mechanism, which improves drilling efficiency and reduces labor intensity.

Adopt 53×59 hexagonal active drill pipe, strong rigidity and large transmission torque
This machine adopts the technical taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.
The hoist planetary gear is increased in module and a support frame is installed, which greatly improves the hoisting and braking capacity of the hoist.
The positioning of four sets of bearings in the vertical shaft box ensures that the gyrator has enough rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
Equipped with an integrated mud pump with a flow rate of 160L/min, it has the characteristics of cost saving, compact structure and easy movement.

It is equipped with rubber crawler chassis, which can move easily at site.

Tehnical Parameter:

Models GL250 Crawler type
Drill Drilling depth 250m
Initial hole dia 200mm
Final hole dia 75mm
Drill rod dia 50mm
Angle range 75°-90°
Dimensions(L×W×H) 1700*1030*1270(mm)
Swivel Head Spindle stroke 450mm
Spindle lifting capacity max 30 KN
Hoist Max .lifting capacity(single rope) 20KN
Power diesel engine Model L28N
Rated power 20KW
Rated speed 2000r/min

Related products

GL250 Crawler borehole drilling rig can equip with BW 160-10 three cylinder mud pump. We can also equip other model of mud pumps according to clients' requirement.


Customer Visting

Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well

Company Profile

Hydraulic Rotary Borehole Drilling Rig Portable For 200m Depth Water Well

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 15-20 days after receiving payment, the drilling tools would be about 7-10 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
