Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth
Specifications
Brand Name :
Glorytek
Model Number :
GL260T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :
40sets/month
Delivery Time :
20 days
Packaging Details :
40HQ container
Name :
GL260T Well Drilling Equipment Hydraulic Trailer Drill Rig Machines
Keyword :
Trailer Drill Rig Machines
Depth :
260m
Hole Dia. :
140-305mm
Drill Pipe :
76mm,89mm
Rotation Speed :
45-70RPM
Lifting Force :
15T
Total Weight :
6500kg
Transportation Dimension :
4000x1850x2300mm
Width of loading(m) :
2.73m
Description

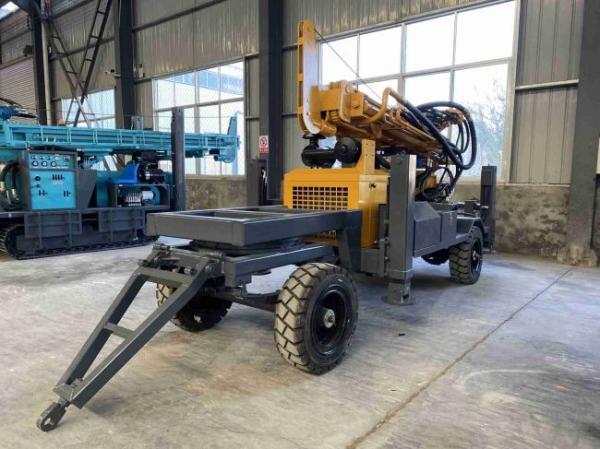

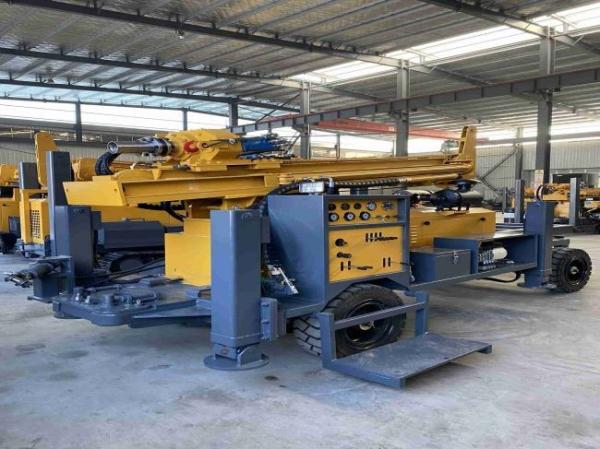

GL260T Well Drilling Equipment Hydraulic Trailer Drill Rig Machines

Description:

It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.

It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

The whole machine adopts full hydraulic drive and has low failure rate.

The drill tower assembly has a hydraulic compensation mechanism.

This drill rig is equipped with 70kw diesel engine.

The drilling depth can be reached to 260m and hole dia. can be 12".

Tehnical Parameter:

The hole diameter (mm) 140-305
Drilling depth (m) 260
Drill pipe diameter (mm) 76mm, 89mm
Drill pipe length(m) 1.5m, 2.0m, 3.0m
Power(kw) 70
Rotating torque(N.m) 4000-5300
Dimension(mm) 4000x1850x2300
The weight (T) 6.5
Equipped with hammer Medium and high air pressure series

Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth

Company Profile

Industrial Water Well Drilling Equipment , Trailer Mounted Drill Rig 260m Depth

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ


Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
