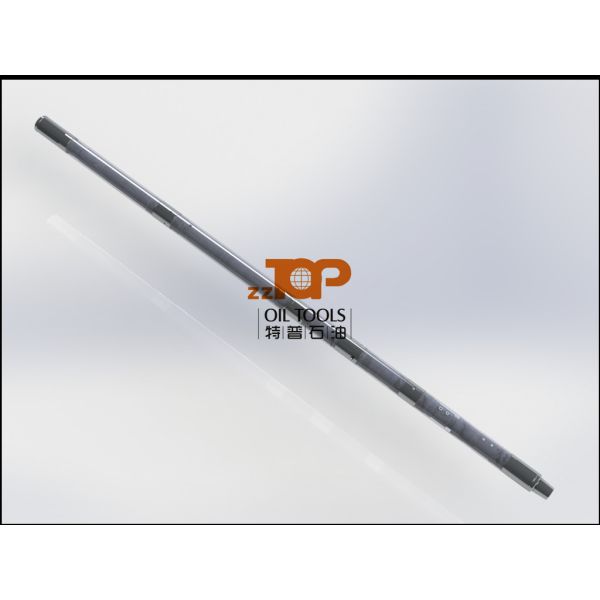

15000psi Downhole Tester Valve 127.5mm Drill Stem Testing Tools For Case Hole
15000psi Downhole Tester Valve 127.5mm Drill Stem Testing Tools For Case Hole
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
Downhole Tester Valve
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Product :
Downhole Tester Valve
Application :
Oil Well Testing Service
Usage :
Cased Hole Drill Stem Testing Operation
Size :
5 inch
Working Pressure :
15000psi
Connection :
IF, EUE , CAS
Working Condition :
Oil & Gas & H2S service
Working Temperature :
Up to 425oF
Description

Downhole Tester Valve For Case Hole Drill Stem Testing Service

The downhole tester valve is a full opening, annulus pressure operated tool used in cased holes. The tester valve has the capabilities of taking multiple downhole closures where pipe manipulation is restricted and a full opening string is desired. The downhole tester valve is composed of four basic sections; ball valve section, upper hydraulic section, nitrogen section and the metering section

The downhole tester valve has the same basic features of the 15K “N”Tester Valve That Without Lock open function plus additional features that include:


* The ability to lock the ball valve in the open position at any point during the test.
* The ability to reactivate the tool for normal operations.

Technical parameter of Downhole Tester Valve

OD 127.5mm(5”)
ID 57mm
Length 7384mm
Ball valve Open Diff.Pressure 35Mpa
Ball valve top and bottom diff.pressure 70Mpa
Working Pressure 105Mpa
Tensile Strength 1947KN
Torque Strength 661KN.M
Working Temperature -29C~204C
Service H2SNACEMR 0175
Connection Thread 31/2”IF BXP 37/8”CASB XP
